XA7Z020-1CLG400Q AMD / Xilinx IC SOC Uses in Aerospace

The XA7Z020-1CLG400Q is a state-of-the-art System on Chip (SoC) from AMD/Xilinx, exemplifying exceptional performance and versatility. As part of the XC7Z0 series, this advanced FPGA combines an ARM dual-core Cortex-A9 processor with cutting-edge FPGA fabric, enabling efficient execution of complex operations. Its robust architecture supports real-time processing and hardware customization, making it a cornerstone for aerospace and defense applications. With features like 85K logic cells and a 667MHz clock speed, the XA7Z020-1CLG400Q ensures reliability in challenging environments. For those looking to supply AMD / Xilinx XC7Z0 series chips, this SoC is a critical component in driving innovation in precision-demanding technologies such as avionics and satellite systems.

Key Takeaways

The XA7Z020-1CLG400Q combines an ARM dual-core Cortex-A9 processor with FPGA fabric, offering unmatched flexibility and performance for aerospace applications.
Its robust design ensures reliability in extreme conditions, making it ideal for mission-critical systems in avionics, satellites, and unmanned vehicles.
Engineers can customize the chip's functionality through its programmable logic, allowing for tailored solutions that meet specific operational requirements.
With 85,000 logic cells and a clock speed of up to 667 MHz, the SoC delivers the computational power necessary for real-time data processing and complex algorithms.
The integration of multiple communication interfaces, such as Ethernet and PCIe, enhances the chip's ability to connect seamlessly within embedded systems.
The XA7Z020-1CLG400Q's power efficiency and thermal management capabilities make it suitable for power-sensitive aerospace applications.
As SoC technology evolves, the XA7Z020-1CLG400Q is positioned to support emerging applications in AI, machine learning, and advanced radar systems.

What is the XA7Z020-1CLG400Q?

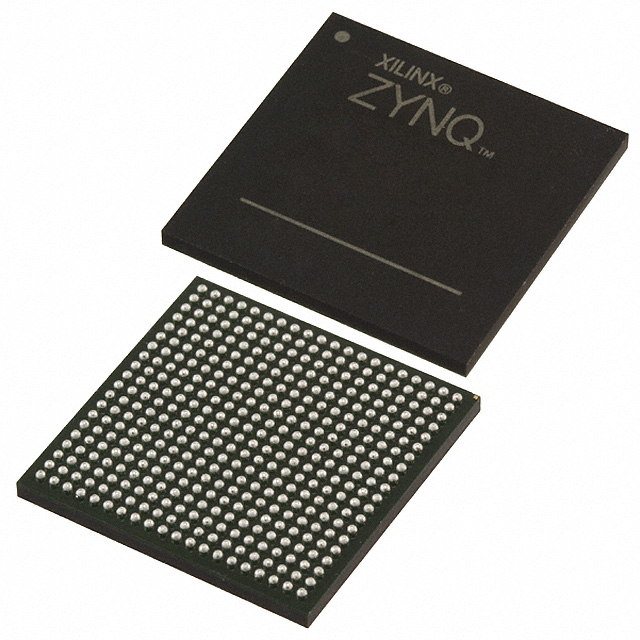

The XA7Z020-1CLG400Q is a high-performance programmable System on Chip (SoC) developed by AMD/Xilinx. It integrates an ARM dual-core Cortex-A9 processor with an advanced FPGA fabric, offering a unique combination of software programmability and hardware flexibility. Built on 28nm technology, this SoC provides exceptional computational power and adaptability, making it suitable for demanding applications in aerospace, defense, and other industries.

Overview of the XA7Z020-1CLG400Q

The XA7Z020-1CLG400Q belongs to the Xilinx Zynq-7000 family, which is renowned for its hybrid architecture. This SoC combines a processing system and programmable logic into a single chip. The ARM Cortex-A9 processor handles software tasks efficiently, while the FPGA fabric enables hardware customization. This dual capability allows engineers to implement custom algorithms, accelerate hardware functions, and optimize system performance.

The chip also includes a variety of communication interfaces, such as Ethernet, USB, PCIe, and a DDR3 memory controller. These features enhance its ability to integrate seamlessly into embedded systems. Its versatility makes it a preferred choice for applications requiring real-time processing, such as avionics systems and satellite technologies.

Key Features of the XA7Z020-1CLG400Q

The XA7Z020-1CLG400Q offers a range of features that set it apart from other SoCs:

ARM Cortex-A9 Processor: Delivers high-speed processing for software tasks.
FPGA Fabric: Provides programmable logic cells for hardware customization and real-time computations.
High-Speed Transceivers: Supports fast data transfer for communication-intensive applications.
On-Chip Memory: Ensures efficient data storage and retrieval during operations.
I/O Interfaces: Includes Ethernet, USB, PCIe, and DDR3 memory controller for seamless connectivity.
28nm Technology: Enhances performance while maintaining power efficiency.

These features enable the XA7Z020-1CLG400Q to perform complex computations, process large volumes of data, and adapt to specific application requirements. Its ability to execute real-time tasks with precision makes it indispensable in aerospace and defense systems.

Technical Specifications of the XA7Z020-1CLG400Q

Processing Capabilities

The XA7Z020-1CLG400Q delivers exceptional processing power through its dual-core ARM Cortex-A9 processor. Operating at a clock speed of up to 667 MHz, this processor ensures efficient execution of software tasks. The integration of field programmable gate arrays (FPGAs) alongside the processor enhances its computational capabilities. This combination allows the chip to handle complex algorithms and real-time data processing with precision.

The FPGA fabric within the XA7Z020-1CLG400Q provides 85,000 logic cells, enabling engineers to implement custom hardware designs. These logic cells support parallel processing, which significantly improves performance in applications requiring high-speed computations. The chip also includes a DDR3 memory controller, ensuring seamless data transfer between the processor and memory. This feature is particularly valuable in aerospace systems, where rapid data access is critical.

Power and Thermal Management

The XA7Z020-1CLG400Q excels in power efficiency, thanks to its 28nm manufacturing process. This advanced technology reduces power consumption while maintaining high performance. The chip’s design minimizes energy usage during both active and idle states, making it suitable for power-sensitive aerospace applications.

Thermal management is another strength of this SoC. The XA7Z020-1CLG400Q operates within a wide temperature range, ensuring reliability in extreme conditions. Its architecture includes features that distribute heat evenly, preventing thermal hotspots. This capability is essential for maintaining consistent performance in environments with fluctuating temperatures, such as those encountered in avionics and satellite systems.

Durability and Reliability

The XA7Z020-1CLG400Q is built to withstand harsh conditions, making it ideal for aerospace and defense applications. Its robust design ensures durability in environments with high levels of vibration, shock, and radiation. The chip complies with stringent industry standards, guaranteeing reliable operation in mission-critical systems.

The programmable logic device within the XA7Z020-1CLG400Q enhances its adaptability. Engineers can reconfigure the FPGA fabric to meet evolving requirements, extending the chip’s lifespan. This flexibility reduces the need for hardware replacements, which is particularly advantageous in long-term aerospace projects. The chip’s reliability and adaptability make it a trusted choice for applications such as avionics, radar systems, and unmanned aerial vehicles.

Why is the XA7Z020-1CLG400Q Relevant to Aerospace and Defense?

Importance of SoCs in Aerospace

System-on-Chip (SoC) technology plays a pivotal role in modern aerospace systems. Aerospace applications demand high-performance computing, real-time data processing, and exceptional reliability. SoCs integrate multiple functionalities into a single chip, reducing the size, weight, and power consumption of electronic systems. This compact design is critical for aerospace systems, where every gram and watt counts.

In avionics, SoCs enable advanced flight control systems, navigation, and communication. They process vast amounts of data from sensors and instruments, ensuring precise and timely decision-making. Satellites and spacecraft also benefit from SoCs, as these chips handle complex computations required for telemetry, imaging, and signal processing. The ability to operate reliably in extreme conditions makes SoCs indispensable in aerospace.

Advantages of the XA7Z020-1CLG400Q

The XA7Z020-1CLG400Q stands out among SoCs due to its unique combination of features tailored for aerospace and defense applications. As a member of the Xilinx Zynq-7000 family, it combines an ARM Cortex-A9 processor with FPGA fabric, offering unmatched flexibility and performance. This hybrid architecture allows engineers to implement custom hardware designs while maintaining efficient software programmability.

Several advantages make the XA7Z020-1CLG400Q a preferred choice in aerospace:

Versatility: The integration of a dual-core ARM processor and FPGA fabric enables the chip to handle diverse tasks, from real-time data analysis to hardware acceleration.
Reliability: Its robust design ensures consistent performance in harsh environments, including high radiation and extreme temperatures.
Compactness: By combining multiple functionalities into a single chip, the XA7Z020-1CLG400Q reduces the size and weight of aerospace systems.
Customization: The FPGA fabric allows engineers to tailor the chip’s functionality to specific mission requirements, enhancing adaptability.
High Performance: With 85,000 logic cells and a clock speed of up to 667 MHz, the chip delivers the computational power needed for demanding aerospace applications.

Compared to other SoCs, the XA7Z020-1CLG400Q excels in its ability to meet the stringent requirements of aerospace systems. While other SoCs may focus on general-purpose applications, this chip’s design prioritizes reliability, flexibility, and performance in mission-critical scenarios. Its role in avionics, satellite systems, and unmanned aerial vehicles highlights its importance in advancing aerospace technology.

Applications of the XA7Z020-1CLG400Q in Aerospace

Avionics Systems

The XA7Z020-1CLG400Q plays a pivotal role in modern avionics systems. Its integration of an ARM Cortex-A9 processor and FPGA fabric allows it to handle real-time data processing with precision. Avionics systems rely on this SoC for tasks such as flight control, navigation, and communication. The chip processes data from multiple sensors and instruments, ensuring accurate and timely decision-making during flight operations.

The programmable logic within the XA7Z020-1CLG400Q enables engineers to customize hardware functions for specific avionics requirements. This adaptability enhances the performance of flight management systems, autopilot controls, and cockpit displays. Its ability to operate reliably in extreme conditions makes it indispensable for aviation applications, where safety and efficiency are paramount.

Satellite and Spacecraft Systems

Satellites and spacecraft demand high-performance computing and exceptional reliability. The XA7Z020-1CLG400Q meets these requirements by offering robust processing capabilities and hardware flexibility. In satellite communication systems, this SoC handles signal processing and data management tasks with efficiency. It ensures seamless transmission and reception of data, which is critical for telemetry, imaging, and scientific research.

The FPGA fabric within the XA7Z020-1CLG400Q supports parallel processing, enabling satellites to perform complex computations in real time. Engineers can reconfigure the chip to adapt to evolving mission needs, extending its operational lifespan. Its compact design reduces the size and weight of satellite systems, making it an ideal choice for space exploration and communication technologies.

Unmanned Aerial Vehicles (UAVs)

Unmanned Aerial Vehicles (UAVs) benefit significantly from the capabilities of the XA7Z020-1CLG400Q. These vehicles require advanced processing power to manage tasks such as navigation, obstacle detection, and data analysis. The SoC’s dual-core ARM processor and FPGA fabric provide the computational strength needed for these operations.

The chip’s ability to process large volumes of data in real time enhances the performance of UAVs in surveillance, reconnaissance, and mapping missions. Its low power consumption ensures extended flight durations, which is crucial for long-range operations. The XA7Z020-1CLG400Q’s durability and reliability make it a trusted component in UAV systems, even in harsh environmental conditions.

Applications of the XA7Z020-1CLG400Q in Defense

Radar and Surveillance Systems

Radar and surveillance systems demand high-speed data processing and precision. The xa7z020-1clg400q excels in these applications due to its hybrid architecture. The ARM Cortex-A9 processor handles software tasks efficiently, while the fpga fabric processes radar signals in real time. This combination ensures accurate detection and tracking of objects, even in challenging environments.

The chip’s programmable logic enables engineers to customize radar algorithms for specific defense missions. Its ability to process large volumes of data quickly enhances situational awareness. This makes it a vital component in ground-based radar systems, airborne surveillance platforms, and naval monitoring systems. The xa7z020-1clg400q ensures reliable performance in critical defense operations.

Electronic Warfare

Electronic warfare systems rely on advanced signal processing to detect, analyze, and counter threats. The xa7z020-1clg400q provides the computational power needed for these tasks. Its fpga fabric supports parallel processing, enabling the chip to analyze multiple signals simultaneously. This capability is crucial for identifying and neutralizing hostile communications or radar signals.

The chip’s adaptability allows engineers to reconfigure its hardware for evolving electronic warfare strategies. Its robust design ensures consistent performance in harsh conditions, such as high radiation or extreme temperatures. Defense organizations use this SoC to develop systems that protect assets and maintain operational superiority in contested environments.

Weapon Systems

Modern weapon systems require precision, reliability, and real-time decision-making. The xa7z020-1clg400q meets these requirements by integrating high-performance processing with customizable hardware. Its ARM Cortex-A9 processor executes control algorithms, while the fpga fabric accelerates hardware functions like targeting and guidance.

The chip’s compact design reduces the size and weight of weapon systems, making it suitable for applications such as missile guidance, fire control systems, and autonomous weapon platforms. Its ability to operate reliably under extreme conditions ensures mission success. The xa7z020-1clg400q plays a critical role in advancing the capabilities of modern defense technologies.

Future Potential of the XA7Z020-1CLG400Q in Aerospace and Defense

Advancements in SoC Technology

The evolution of System-on-Chip (SoC) technology continues to redefine possibilities in aerospace and defense. The XA7Z020-1CLG400Q exemplifies this progress by integrating an ARM dual-core Cortex-A9 processor with FPGA fabric, enabling unparalleled flexibility and performance. Future advancements in SoC design will likely focus on increasing computational power while maintaining energy efficiency. Enhanced manufacturing processes, such as smaller nanometer technologies, will further reduce power consumption and improve processing speeds.

Emerging trends in artificial intelligence (AI) and machine learning (ML) will also influence SoC development. The XA7Z020-1CLG400Q, with its FPGA capabilities, already supports AI-driven applications like real-time data analysis and decision-making. As AI algorithms become more sophisticated, SoCs will need to accommodate higher levels of parallel processing and hardware acceleration. This progression will expand the chip's potential in areas such as autonomous navigation and predictive maintenance for aerospace systems.

Additionally, the integration of advanced communication protocols into SoCs will enhance their role in connected systems. The XA7Z020-1CLG400Q’s existing support for Ethernet and PCIe interfaces positions it well for future upgrades. These improvements will enable seamless data exchange between components in complex aerospace networks, ensuring faster and more reliable communication.

Emerging Applications

The XA7Z020-1CLG400Q holds immense potential for emerging applications in aerospace and defense. In the realm of space exploration, this SoC can support next-generation satellite systems designed for deep-space missions. Its FPGA fabric allows engineers to reconfigure hardware for evolving mission requirements, ensuring adaptability in unpredictable environments. This capability will prove invaluable for long-term projects, such as interplanetary exploration and asteroid mining.

Unmanned systems, including drones and autonomous vehicles, represent another area of growth. The XA7Z020-1CLG400Q’s ability to process large volumes of data in real time makes it ideal for tasks like obstacle detection, terrain mapping, and target tracking. As defense organizations increasingly rely on unmanned systems for reconnaissance and combat operations, this SoC will play a critical role in enhancing their capabilities.

In addition, the chip’s potential extends to advanced radar and surveillance systems. Future radar technologies will demand higher resolution and faster data processing. The XA7Z020-1CLG400Q, with its hybrid architecture, can meet these demands by combining software programmability with hardware acceleration. This adaptability ensures that the chip remains relevant as radar systems evolve to detect smaller and faster-moving objects.

The rise of hypersonic technologies also presents new opportunities for the XA7Z020-1CLG400Q. Hypersonic vehicles require robust computing systems capable of operating under extreme conditions. The chip’s durability and reliability make it a strong candidate for integration into these cutting-edge platforms, where precision and speed are paramount.

The XA7Z020-1CLG400Q demonstrates exceptional versatility and performance, making it a vital component in aerospace and defense systems. Its integration of an ARM Cortex-A9 processor, FPGA fabric, and advanced I/O interfaces enables real-time processing and hardware customization. These features drive innovation in avionics, satellite systems, and unmanned vehicles. By combining reliability with adaptability, the XA7Z020-1CLG400Q plays a critical role in advancing mission-critical technologies. As SoC technology evolves, this chip holds immense potential to shape future aerospace and defense innovations, ensuring its relevance in cutting-edge applications.
