XC6SLX100T-2FGG676I FPGA: Specs You Can Trust

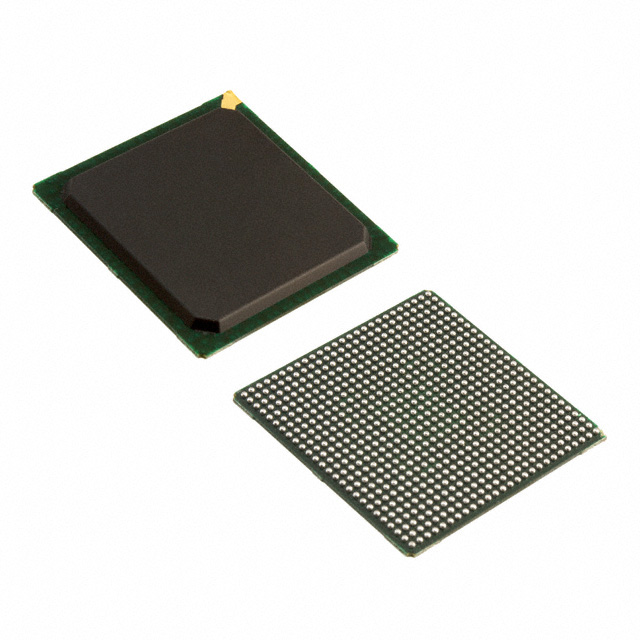

The XC6SLX100T-2FGG676I, a standout in the Xilinx Spartan-6 family, exemplifies the pinnacle of field programmable gate array (FPGA) technology. Built on a mature 45 nm low-power copper process, this IC offers an optimal balance of cost, power, and performance. With over 101,261 logic cells and 376 I/O pins, it meets diverse technical specifications. The speed grade of 2 ensures high-performance applications, while its power efficiency makes it a reliable choice for various industries. As a trusted manufacturer, Xilinx delivers a product that stands out in the competitive landscape.
Key Takeaways
The XC6SLX100T-2FGG676I FPGA features over 101,261 logic cells and 376 I/O pins, making it highly versatile for various applications.
With a speed grade of 2, this FPGA is designed for high-performance tasks, ensuring efficient operation in demanding environments.
Its power-efficient design, built on a 45 nm low-power copper process, optimizes power consumption, making it ideal for cost-sensitive applications.
The FPGA supports high-speed serial connectivity with data rates up to 3.2 Gb/s, perfect for telecommunications and networking needs.
Integrated DSP48A1 slices enhance its capability for digital signal processing, making it suitable for audio and video applications.
The XC6SLX100T-2FGG676I operates effectively across a wide temperature range (-40°C to +100°C), ensuring reliability in harsh conditions.
This FPGA is a cost-effective solution for high-volume applications, balancing performance and affordability for manufacturers.
Overview of XC6SLX100T-2FGG676I Specifications
The XC6SLX100T-2FGG676I stands as a remarkable example of a field programmable gate array (FPGA) within the Spartan-6 family. This IC offers a comprehensive set of features that cater to a wide range of applications, ensuring reliability and performance.
Logic Resources
Number of Logic Cells and Slices
The XC6SLX100T-2FGG676I boasts an impressive 101,261 logic cells. These cells form the backbone of the IC, enabling complex computations and operations. The architecture includes slices that enhance the flexibility and efficiency of the FPGA.
LUTs and ALMs
This IC incorporates dual-register 6-input lookup tables (LUTs), which provide a robust framework for implementing logic functions. The Adaptive Logic Modules (ALMs) further optimize the logic design, ensuring that the FPGA can handle intricate tasks with ease.
I/O Capabilities
Number and Types of I/O Pins
With a total of 376 I/O pins, the XC6SLX100T-2FGG676I offers extensive interfacing options. These pins support various signal standards, making the IC versatile for different applications. The number of I/O pins ensures that users can connect multiple peripherals and devices seamlessly.
Configurations and Data Rates
The IC supports high data rates, with configurations that allow for efficient data transfer. The FPGA can manage data rates up to 800 Mb/s, making it suitable for high-speed applications. This capability ensures that the IC can handle demanding tasks without compromising performance.
Performance
Speed Grade and Implications
The XC6SLX100T-2FGG676I operates at a speed grade of 2, which signifies its ability to perform high-speed operations efficiently. This speed grade ensures that the FPGA can meet the demands of performance-intensive applications, providing users with a reliable solution.
High-Speed Serial Connectivity
Equipped with high-speed serial transceivers, the IC supports data rates up to 3.2 Gb/s. This feature makes the FPGA ideal for applications requiring fast data transmission, such as communication systems and high-speed networking.
Power Consumption
Power Requirements and Efficiency
The XC6SLX100T-2FGG676I excels in power efficiency, a crucial factor for many applications. Built on a 45 nm low-power copper process technology, this IC optimizes power consumption without sacrificing performance. The design incorporates advanced system-level power management modes, which allow the field programmable gate array to operate efficiently across various tasks. These features make the FPGA an ideal choice for cost-sensitive and high-volume applications, where power efficiency translates into reduced operational costs.
Operating Temperature Range
The XC6SLX100T-2FGG676I operates within a robust temperature range, ensuring reliability in diverse environments. Its operating temperature range spans from a min operating temperature of -40°C to a max operating temperature of +100°C. This wide range allows the IC to function effectively in both extreme cold and heat, making it suitable for applications in harsh conditions. The number of I/O pins, totaling 376, further enhances its adaptability, providing extensive interfacing options for various peripherals and devices.
Applications of XC6SLX100T-2FGG676I
The XC6SLX100T-2FGG676I serves as a versatile solution across various applications, thanks to its robust features and capabilities. This IC from the Spartan-6 family by Xilinx excels in several domains, making it a preferred choice for engineers and developers.
High-Speed Serial Connectivity
The field programmable gate array supports high-speed serial connectivity, which is crucial for modern communication systems. Equipped with transceivers that handle data rates up to 3.2 Gb/s, this IC facilitates rapid data transmission. Industries relying on fast and reliable data exchange, such as telecommunications and networking, benefit significantly from this capability. The IC's ability to maintain performance across its wide operating temperature range ensures reliability in diverse environments.
Digital Signal Processing
Digital signal processing (DSP) represents another area where the XC6SLX100T-2FGG676I shines. The integrated DSP48A1 slices enable efficient arithmetic operations, making the IC ideal for applications requiring complex signal processing. This feature proves invaluable in fields like audio and video processing, where precision and speed are paramount. The field programmable gate array architecture allows for customization, ensuring that specific DSP tasks are handled with optimal efficiency.
Memory-Intensive Applications
Memory-intensive applications demand high bandwidth and efficient data handling, both of which the XC6SLX100T-2FGG676I provides. With integrated memory controller blocks supporting DDR, DDR2, DDR3, and LPDDR, this IC manages data rates up to 800 Mb/s. Such capabilities make it suitable for applications in data centers and storage solutions, where large volumes of data require swift processing. The IC's design ensures that it meets the demands of memory-heavy tasks without compromising performance.
Embedded Processing
The XC6SLX100T-2FGG676I excels in embedded processing applications, offering a robust platform for developers. This IC supports the MicroBlaze™ soft processor, which provides customizable processing capabilities. Engineers can tailor the processor to meet specific application needs, enhancing the flexibility of the field programmable gate array. The integration of this processor allows the IC to handle complex tasks efficiently, making it suitable for embedded systems that require reliable and adaptable processing power.
Embedded systems often demand a balance between performance and power efficiency. The XC6SLX100T-2FGG676I achieves this balance through its advanced architecture and low-power design. Its ability to operate within a wide temperature range, from -40°C to 100°C, ensures consistent performance in various environments. This adaptability makes the IC an ideal choice for automotive, industrial, and consumer electronics applications, where environmental conditions can vary significantly.
Cost-Sensitive and High-Volume Applications
In cost-sensitive and high-volume applications, the XC6SLX100T-2FGG676I stands out as a cost-effective solution. Its design prioritizes affordability without compromising on performance or reliability. This IC is well-suited for consumer electronics and automotive systems, where cost efficiency is crucial. The field programmable gate array offers a competitive edge by providing high performance at a lower cost, making it an attractive option for manufacturers aiming to optimize production costs.
The XC6SLX100T-2FGG676I also supports high-volume production requirements. Its efficient design and manufacturing process ensure that it can be produced in large quantities without sacrificing quality. This capability is essential for industries that require mass production of electronic components. The IC's power efficiency further contributes to its appeal, as it reduces operational costs over time, benefiting both manufacturers and end-users.
The XC6SLX100T-2FGG676I FPGA stands out with its impressive technical specifications, making it a reliable choice for various applications. This IC offers over 101,261 logic cells and 376 I/O pins, ensuring robust performance. Its dual-register 6-input lookup table logic and built-in system-level blocks enhance efficiency. The IC's power-optimized high-speed serial transceiver blocks and advanced system-level power management modes further highlight its versatility. These features make the XC6SLX100T-2FGG676I a trusted solution for industries requiring high performance and adaptability.
FAQ
What makes the XC6SLX100T-2FGG676I FPGA suitable for high-volume applications?
The XC6SLX100T-2FGG676I FPGA excels in high-volume applications due to its cost-effective design and robust performance. It offers a balance of logic cell density and power efficiency, making it ideal for consumer electronics and automotive systems where large-scale production is essential.
How does the XC6SLX100T-2FGG676I support digital signal processing (DSP)?
This FPGA integrates DSP48A1 slices, which enhance its capability to perform complex arithmetic operations efficiently. These slices make it suitable for applications requiring precise and fast digital signal processing, such as audio and video processing.
Can the XC6SLX100T-2FGG676I handle memory-intensive tasks?
Yes, the XC6SLX100T-2FGG676I is well-equipped for memory-intensive applications. It features integrated memory controller blocks that support various DDR standards, allowing it to manage high data rates and substantial memory bandwidth effectively.
What are the power efficiency features of the XC6SLX100T-2FGG676I?
Built on a 45 nm low-power copper process, this FPGA optimizes power consumption without compromising performance. Its advanced system-level power management modes ensure efficient operation across diverse tasks, making it ideal for cost-sensitive applications.
How does the XC6SLX100T-2FGG676I ensure reliable performance in different environments?
The FPGA operates within a wide temperature range from -40°C to +100°C, ensuring reliability in both extreme cold and heat. This adaptability makes it suitable for applications in harsh conditions, such as industrial and automotive environments.
What types of I/O capabilities does the XC6SLX100T-2FGG676I offer?
The XC6SLX100T-2FGG676I provides 376 I/O pins, supporting various signal standards. This extensive interfacing capability allows seamless connection with multiple peripherals and devices, enhancing its versatility for different applications.
How does the XC6SLX100T-2FGG676I facilitate high-speed serial connectivity?
Equipped with high-speed serial transceivers, this FPGA supports data rates up to 3.2 Gb/s. This feature makes it ideal for applications requiring rapid data transmission, such as telecommunications and networking.
Is the XC6SLX100T-2FGG676I suitable for embedded processing?
Yes, the FPGA supports the MicroBlaze™ soft processor, offering customizable processing capabilities. This flexibility allows engineers to tailor the processor to specific application needs, making it suitable for embedded systems requiring adaptable processing power.
What industries benefit most from using the XC6SLX100T-2FGG676I?
Industries such as consumer electronics, automotive, telecommunications, and data centers benefit significantly from this FPGA. Its cost-effectiveness, power efficiency, and robust performance make it a preferred choice for applications in these sectors.
How does the XC6SLX100T-2FGG676I compare to custom ASICs?
The XC6SLX100T-2FGG676I offers a cost-effective alternative to custom ASICs, providing excellent system integration and flexibility. It excels in DSP and high-volume logic designs, making it a versatile solution for various applications.
