How Xilinx Tackles Timing Challenges with Logic Automation

Xilinx streamlines timing optimization by addressing key design challenges. Its advanced tools focus on resolving issues such as critical path delays, routing congestion, and timing closure problems. In congested designs, longer wire paths can increase delays and negatively impact performance. Xilinx tackles these challenges with features like the automatic introduction of logic, which enhances signal distribution and minimizes timing violations. Additionally, removing resets from control logic simplifies the design and further improves timing. Xilinx parts FPGA & SoC series distributor solutions provide engineers with the resources to develop efficient and reliable designs across various industries.

Key Takeaways

• Xilinx tools make timing fixes easier by solving delay problems.

• They add logic automatically to spread signals and fix timing issues.

• Good FPGA design needs early timing rules for better performance.

• Xilinx uses smart methods to make timing fixes simple and fast.

• Checking and improving with Xilinx tools keeps designs working well.

Common Timing Challenges in FPGA Design

Critical Path Delays and Their Impact on Performance

Critical path delays represent one of the most significant challenges in FPGA design. These delays occur when signals take longer to propagate through the longest path in a circuit, limiting the overall performance of the design. Engineers often encounter this issue in high-speed applications where timing requirements are stringent. Xilinx addresses these delays by introducing advanced tools that optimize signal propagation and reduce latency.

A quantitative analysis of timing challenges reveals the impact of critical path delays on latency and resource utilization. For example, designs configured with registers and BRAM demonstrate varying trade-offs in latency and resource overhead.

This data highlights how optimized configurations can mitigate critical path delays while maintaining efficient resource utilization.

Routing Congestion and Signal Integrity Issues

Routing congestion arises when multiple signals compete for limited routing resources within an FPGA. This congestion can degrade signal integrity and increase latency, especially in complex designs. Xilinx tools excel at managing routing congestion by redistributing signals and enhancing signal integrity.

Latency comparisons between traditional systems and optimized designs demonstrate the efficiency of Xilinx solutions:

• The worst-case latency for systems using round-robin arbiters reaches approximately 6.75 × 10−6 seconds under full capacity.

• Optimized systems achieve a worst-case latency of around 2.7 × 10−6 seconds under identical conditions.

• This improvement reduces latency by nearly 60%, showcasing the effectiveness of Xilinx's routing congestion management.

By minimizing congestion, Xilinx ensures reliable performance and robust signal integrity across diverse applications.

Timing Closure Challenges in Complex Designs

Timing closure becomes increasingly difficult as FPGA designs grow in complexity. Engineers must ensure that all timing constraints are met while balancing resource utilization and performance. Xilinx simplifies this process with automated timing closure techniques, enabling designers to achieve optimal results without manual intervention.

The automatic introduction of logic for high fanout paths plays a pivotal role in timing closure. This feature distributes signals more effectively, reducing timing violations and improving overall design reliability. Xilinx's algorithms also provide detailed congestion reporting, allowing engineers to identify and resolve bottlenecks efficiently.

By addressing timing closure challenges, Xilinx empowers designers to create high-performance FPGA solutions that meet stringent timing requirements.

Xilinx Features for Timing Optimization

Automatic Introduction of Logic for High Fanout Paths

High fanout paths often create significant timing challenges in FPGA designs. These paths occur when a single signal drives multiple destinations, leading to increased delays and potential timing violations. Xilinx addresses this issue with the automatic introduction of logic, a feature that replicates high fanout net drivers to distribute signals more effectively. This approach reduces the load on individual drivers, improving signal integrity and ensuring that designs meet stringent timing requirements.

Technical documentation highlights the importance of this feature in managing high fanout paths. By replicating net drivers, Xilinx tools optimize signal distribution across the design, minimizing the risk of timing violations. This capability is particularly beneficial in applications requiring high performance and reliability, such as telecommunications and automotive systems.

For example, the Artix-7 FPGA series, including the XC7A100T, leverages this feature to enhance signal distribution in communication systems. Similarly, the Zynq UltraScale+ MPSoC series, such as the XCZU3EG, benefits from this optimization in advanced embedded systems and AI edge computing. These examples demonstrate how Xilinx integrates the automatic introduction of logic to tackle high fanout challenges effectively.

Timing Closure Techniques and Algorithms

Achieving timing closure in complex FPGA designs requires advanced techniques and algorithms. Xilinx employs innovative methodologies to streamline this process, enabling designers to meet timing constraints without manual intervention. These techniques include packing strategies that balance resource utilization and minimize routing congestion.

A quantitative analysis of timing closure techniques reveals the impact of packing methodologies on design performance. Dense packing strategies can increase routing congestion, while sparse packing reduces congestion but may lead to underutilized resources. Xilinx introduces a metric called RDensity to assess post-packing density, helping designers make informed decisions about trade-offs between routability and performance.

For instance, the Kintex UltraScale+ FPGA series, such as the XCKU5P, utilizes these algorithms to optimize designs for high-speed networking and DSP applications. By addressing timing closure challenges, Xilinx ensures that engineers can create efficient and reliable FPGA solutions for diverse industries.

Congestion Reporting and Control Set Optimization

Routing congestion poses a significant challenge in FPGA designs, affecting both timing and overall performance. Xilinx tools provide detailed congestion reporting, enabling designers to identify bottlenecks and implement control set optimizations. These features help reduce congestion, improve signal integrity, and enhance timing performance.

Reports on congestion management strategies highlight measurable outcomes achieved through Xilinx tools. For example:

These strategies illustrate how Xilinx tools optimize congestion management to achieve higher throughput and reliability. The Spartan-7 FPGA series, such as the XC7S50, exemplifies this capability in industrial automation and embedded vision applications. Similarly, the Virtex UltraScale+ FPGA series, including the XCVU9P, leverages congestion reporting to enhance performance in data centers and 5G infrastructure.

By combining congestion reporting with control set optimization, Xilinx empowers engineers to create high-performance designs that meet the demands of modern applications.

Practical Applications of Xilinx Tools

Timing Report Comparisons Before and After Optimization

Xilinx tools provide measurable improvements in timing performance by addressing critical design challenges. Timing reports generated before and after optimization highlight these advancements. For instance:

• Applying timing exceptions, such as multi-cycle paths (MCP), significantly enhances performance. One design achieved an 86 MHz clock speed after optimization, compared to just 24 MHz without MCP.

• Constrained designs show a 9% improvement in path delay, with total delays reduced from 7.312 ns (unconstrained) to 6.654 ns (constrained).

• Routing priorities also shift with constraints. In the can_top design, unconstrained routing was 5% faster, demonstrating how constraints influence routing efficiency.

These comparisons emphasize the importance of Xilinx's optimization tools in achieving better routing, higher clock frequencies, and improved timing closure. Engineers can rely on these tools to meet stringent timing requirements in applications like telecommunications and automotive systems.

Efficient Logic Design Strategies for Timing Closure

Efficient logic design plays a crucial role in achieving timing closure. Xilinx tools simplify this process by introducing automated features that optimize signal distribution and reduce congestion. For example, the automatic introduction of logic for high fanout paths replicates net drivers, ensuring balanced signal distribution. This reduces timing violations and enhances overall design reliability.

Designers can also leverage Xilinx's packing strategies to balance resource utilization and minimize congestion. Sparse packing reduces congestion but may underutilize resources, while dense packing maximizes resource use but increases congestion. Xilinx tools, such as those used in the Kintex UltraScale+ FPGA series (e.g., XCKU5P), help designers find the optimal balance for high-speed networking and DSP applications.

By integrating these strategies, engineers can streamline their workflows and focus on higher-level design considerations. This approach ensures that FPGA designs meet performance and reliability standards across various industries.

Case Studies Demonstrating Improved Timing Performance

Real-world case studies illustrate the effectiveness of Xilinx tools in improving timing performance. A binary Edwards curve accelerator designed for Xilinx FPGAs achieved significant throughput improvements, showcasing enhanced performance metrics across multiple FPGA models. Similarly, implementing a deep neural network architecture on Xilinx FPGAs resulted in a threefold improvement in timing performance compared to direct implementation methods.

Another study demonstrated the use of Xilinx tools for rapid prototyping and hardware-in-the-loop verification. This approach improved system dynamics and reduced control system sampling time, highlighting the versatility of Xilinx solutions in diverse applications.

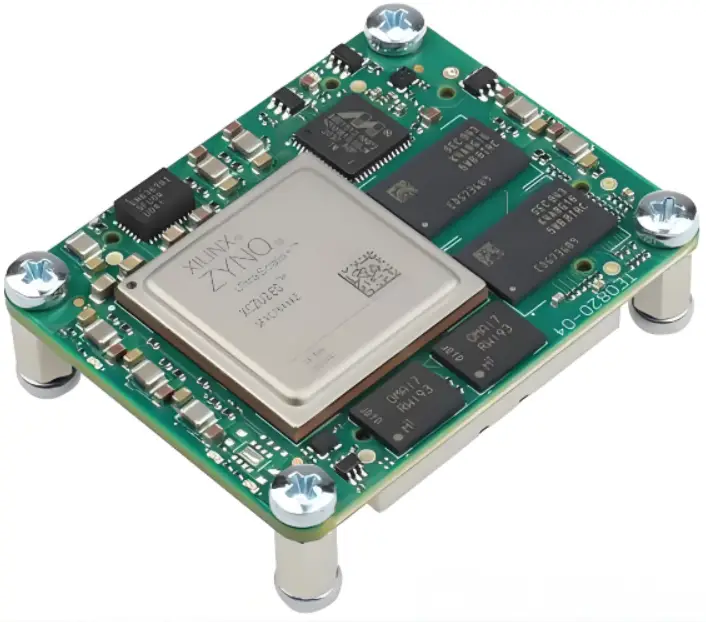

Popular Xilinx parts, such as the Spartan-7 XC7S50 for industrial automation and the Zynq UltraScale+ MPSoC XCZU3EG for AI edge computing, exemplify these advancements. These devices empower engineers to create cutting-edge designs that push the boundaries of technology while maintaining robust timing performance.

Best Practices for Timing Optimization with Xilinx

Designing with Timing Constraints in Mind

Effective FPGA design begins with a clear understanding of timing constraints. Engineers must define these constraints early in the design process to ensure optimal performance. Xilinx tools support this approach by offering methodologies like statistical timing analysis, which provides a probabilistic view of timing variations. This method accounts for factors that traditional analysis may overlook, such as environmental conditions and aging effects.

Strategic floorplanning and placement further enhance timing reliability. By positioning components to minimize delays, designers can reduce congestion and improve signal integrity. Routing optimization also plays a critical role. Advanced algorithms in Xilinx tools consider timing constraints to refine circuit performance. Buffer insertion and retiming techniques balance path delays, ensuring designs meet stringent timing requirements.

Industry benchmarks like the UltraFast Design Methodology provide comprehensive guidelines for timing optimization. This methodology accelerates the design process while maintaining reliability. Vendor-specific optimizations, including Xilinx IP cores and libraries, further enhance performance. Timing analysis remains essential throughout the design cycle to identify and address critical paths effectively.

Leveraging Automated Features for Timing Closure

Automated features simplify timing closure in FPGA designs. Xilinx tools utilize advanced methodologies like path-based statistical static timing analysis (SSTA) to capture parameter variations with high accuracy. This approach minimizes errors and refines worst-case delay values.

New timing analysis methodologies identify critical paths while accounting for supply node independence. These techniques optimize timing closure by addressing congestion and improving signal distribution. Engineers benefit from iterative analysis, which continuously refines designs to meet timing constraints.

For example, automated buffer insertion and retiming balance path delays without manual intervention. Signal integrity analysis identifies issues like crosstalk, ensuring timing reliability. Early timing closure techniques proactively address timing challenges, saving resources and improving efficiency.

Iterative Validation and Optimization Using Xilinx Tools

Iterative validation ensures FPGA designs meet timing constraints throughout the development cycle. Xilinx tools enable continuous analysis, allowing engineers to address timing issues as designs evolve. Incremental static timing analysis (STA) plays a key role in maintaining timing closure during iterative optimization.

Cross-disciplinary collaboration enhances design robustness. Engineers from various fields contribute insights that improve timing reliability. Xilinx tools support this collaboration by providing detailed congestion reporting and optimization strategies. These features help designers identify bottlenecks and implement solutions effectively.

Environmental considerations also influence timing performance. Designs analyzed under varying conditions demonstrate robustness and reliability. Aging models incorporated into timing analysis ensure long-term performance remains consistent. By leveraging Xilinx tools, engineers can validate and optimize designs iteratively, achieving high-performance results across diverse applications.

Tip: Early timing closure saves resources and improves efficiency. Proactively addressing timing constraints ensures designs meet performance standards.

Xilinx logic automation transforms FPGA design by simplifying timing optimization and enhancing efficiency. Its tools address critical challenges like high fanout paths and timing closure, ensuring reliable performance in complex projects.

Quantitative metrics validate these benefits. For example:

These results demonstrate higher frequency and lower power consumption with Xilinx automation, confirming its role in simplifying timing optimization.

Recent studies further highlight improved design efficiency. The K-means clustering algorithm on Xilinx platforms achieved speedups of up to 174× compared to software-only implementations. Additionally, FPGA designs using Xilinx methodologies proved to be significantly more energy-efficient than general-purpose processors and GPUs.

Comparative analyses also showcase reliable performance gains in complex projects. DALUT-based PID controllers outperform traditional designs, utilizing fewer resources while achieving superior metrics. Historical trends reinforce these findings, with engineers reporting faster validation, reduced compile times, and enhanced productivity using Xilinx tools.

By addressing timing challenges and optimizing workflows, Xilinx empowers engineers to create cutting-edge FPGA designs that meet stringent performance standards.

What is the role of logic automation in FPGA timing optimization?

Logic automation simplifies timing optimization by automatically introducing logic to manage high fanout paths. This process improves signal distribution, reduces timing violations, and enhances overall design reliability. Engineers can focus on high-level design tasks while achieving better timing performance.

How does Xilinx address routing congestion in FPGA designs?

Xilinx tools redistribute signals and optimize routing paths to minimize congestion. Features like congestion reporting and control set optimization help engineers identify bottlenecks and improve signal integrity. These strategies ensure reliable performance in complex designs.

What are high fanout paths, and why are they challenging?

High fanout paths occur when a single signal drives multiple destinations, increasing delays and risking timing violations. Xilinx resolves this challenge by replicating net drivers, balancing signal distribution, and maintaining timing reliability in high-performance applications.

Can Xilinx tools improve timing closure in complex designs?

Yes, Xilinx tools use advanced algorithms and automated techniques to simplify timing closure. Features like packing strategies and timing analysis help engineers meet constraints efficiently, even in resource-intensive designs.

Why is timing analysis important in FPGA design?

Timing analysis identifies critical paths and ensures designs meet performance requirements. Xilinx tools provide detailed reports and iterative validation, enabling engineers to refine designs and achieve robust timing performance across various applications.
