How the XR3160EIUTR-F Simplifies RS232 and RS485 Connections
The XR3160EIUTR-F revolutionizes serial communication by supporting RS232, RS422, and RS485 protocols in a single device. Its advanced design ensures seamless integration into diverse systems, meeting the growing demand for reliable data transmission. The market for multiprotocol transceivers, including RS232, RS422, and RS485, is projected to reach $450 million USD in 2023, driven by industrial automation and smart building systems. With features like high-speed data rates up to 20Mbps and a compact 20-SSOP package, the XR3160EIUTR-F delivers exceptional performance while optimizing space in modern applications.
Key Takeaways
The XR3160EIUTR-F works with RS232, RS422, and RS485, making communication easier in many devices.
It can send data very fast, up to 20Mbps, for smooth and reliable performance in tough conditions.
This device works in temperatures from -40°C to 85°C, so it fits well in factories, cars, and medical tools.
Its small 20-SSOP design saves space on circuit boards, perfect for small devices like IoT tools and medical machines.
Using the XR3160EIUTR-F makes designs simpler and cheaper by removing the need for many communication parts.
Understanding RS232, RS422, and RS485 Communication
Serial communication protocols like RS232, RS422, and RS485 play a critical role in enabling data exchange between devices. Each protocol offers unique features tailored to specific applications, making it essential to understand their differences and challenges.
Key Differences Between RS232, RS422, and RS485
RS232, RS422, and RS485 differ in transmission modes, distances, and device connectivity. RS232 uses single-ended transmission, making it suitable for short-distance communication. RS422 and RS485 employ differential transmission, which enhances noise immunity and supports longer distances. The table below highlights these distinctions:
Protocol | Transmission Mode | Maximum Distance | Number of Devices |
|---|---|---|---|
RS232 | Single-ended | 50 feet (15 meters) | 1 |
RS422 | Differential | 4000 feet (1219 meters) | Up to 10 |
RS485 | Differential | 4000 feet (1219 meters) | Up to 128 |
RS232 is ideal for point-to-point communication, while RS422 and RS485 excel in multi-device environments. RS485, in particular, supports up to 128 devices, making it a preferred choice for industrial and automation systems.
Challenges in Implementing Serial Communication Protocols
Implementing these protocols in real-world applications often presents challenges. For instance, RS232 and RS485 transmit one bit at a time, which can limit communication speed. Additionally, improper wiring or grounding may lead to miscommunication or data loss. The table below outlines common issues:
Challenge Type | Description |
|---|---|
Unsatisfactory Speeds | RS232 and RS485 can only send one bit at a time, leading to slower communication speeds. |
Flow Control | Lack of flow control can cause lock-ups or buffer overflows, resulting in data loss. |
Miscommunication Between Devices | Issues can arise from poor cable connections or incorrect installations between DTE and DCE. |
Pin Configuration Issues | Incorrect pin configurations can occur due to confusion in complex environments. |
Addressing these challenges requires careful planning and troubleshooting. Techniques such as ensuring proper grounding, matching baud rates, and using shielding can significantly improve communication reliability.
Understanding these differences and challenges helps engineers select the right protocol for their applications, ensuring efficient and reliable data transfer.
Key Features of the XR3160EIUTR-F
The XR3160EIUTR-F stands out as a versatile and efficient solution for serial communication. Its advanced features ensure seamless integration into modern systems, making it a preferred choice for engineers and developers. Below are the key features that make this device exceptional.
Multi-Protocol Support for RS232, RS422, and RS485
The XR3160EIUTR-F supports RS232, RS422, and RS485 protocols, offering unmatched flexibility for diverse applications. This multi-protocol capability allows the device to adapt to various communication standards without requiring additional components. It ensures compatibility with microcontrollers, processors, and other serial communication devices.
Key specifications include:
Supported Protocols: RS232, RS422, RS485
Data Rates: Up to 20Mbps
Supply Voltage Range: 3V to 5.5V
Operating Temperature Range: -40°C to 85°C
Feature | Description |
|---|---|
Supported Protocols | RS232, RS422, RS485 |
Receiver Hysteresis | 30mV for improved noise immunity |

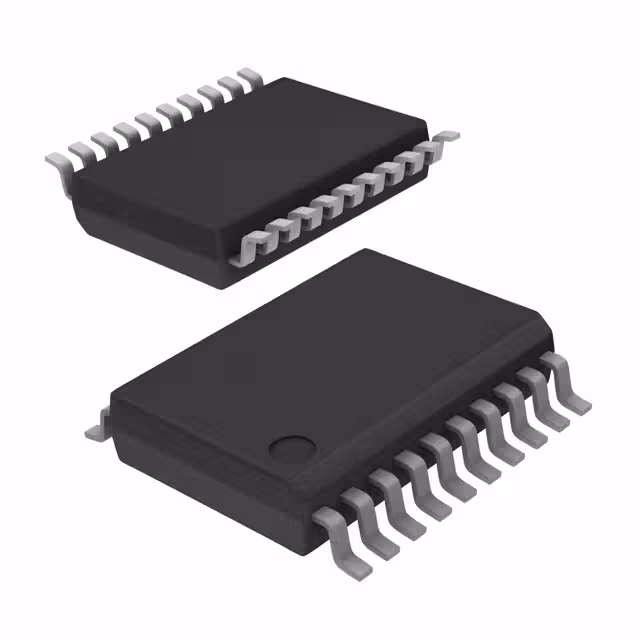

Package Type | Small 20-SSOP for space-constrained designs |
This versatility simplifies system design and reduces the need for multiple transceivers.
High-Speed Data Transmission and Reliability
The XR3160EIUTR-F achieves high-speed data transmission rates of up to 20Mbps, ensuring efficient communication in demanding environments. Its 30mV receiver hysteresis enhances noise immunity, maintaining reliable performance even in electrically noisy conditions.
Feature | Specification |
|---|---|
Max Data Rate | Up to 20Mbps |
Noise Immunity | 30mV receiver hysteresis |
Operating Temperature Range | -40°C to 85°C |
This combination of speed and reliability makes the XR3160EIUTR-F ideal for industrial automation, networking, and other critical applications.
Low Power Consumption and Compact Design
The XR3160EIUTR-F is designed for energy efficiency, making it suitable for power-sensitive applications. Its low-power operation reduces energy consumption without compromising performance. Additionally, the compact 20-SSOP package optimizes PCB layouts, enabling integration into space-constrained systems.
This design benefits applications like consumer electronics, IoT devices, and medical instruments, where space and power efficiency are crucial.
Benefits of Using the XR3160EIUTR-F
Simplified Integration into Existing Systems
The XR3160EIUTR-F simplifies integration into existing communication systems by offering multi-protocol support. It works seamlessly with RS232, RS422, and RS485 standards, eliminating the need for multiple transceivers. This compatibility reduces design complexity and accelerates development timelines.
The device supports data rates of up to 20Mbps, ensuring fast and efficient communication. Its low power consumption and compact 20-SSOP package make it ideal for space-constrained designs. Additionally, the XR3160EIUTR-F is compatible with a wide range of microcontrollers and processors, further enhancing its versatility.
Feature | Description |
|---|---|
Multi-protocol support | RS232, RS422, and RS485 communication standards |
Data rates | Up to 20Mbps |
Power consumption | Low power for energy-efficient operation |
Compact design | Small 20-SSOP package for space-constrained systems |
Compatibility | Works with various microcontrollers and processors |
This combination of features ensures smooth integration into diverse applications, from industrial automation to consumer electronics.
Enhanced Signal Integrity and Noise Immunity
The XR3160EIUTR-F enhances signal integrity and noise immunity through advanced design features. It supports data rates of up to 20Mbps, ensuring reliable communication even in high-speed applications. The device operates within a wide voltage range of 3V to 5.5V and a temperature range of -40°C to 85°C, providing robust performance in challenging environments.
The device incorporates a 30mV receiver hysteresis, which improves noise immunity. This feature ensures stable communication in electrically noisy conditions, such as industrial settings. Additionally, robust ESD protection safeguards the device against electrical surges, further enhancing reliability.
Feature | Description |
|---|---|
Data Rate | Up to 20Mbps |
Voltage Range | 3V to 5.5V |
Temperature Range | -40°C to 85°C |
Communication Protocols | RS232, RS422, RS485 |
ESD Protection | Provides reliability in harsh environments |
These features make the XR3160EIUTR-F a dependable choice for applications requiring high signal integrity.
Cost-Effectiveness for Multi-Protocol Applications
The XR3160EIUTR-F offers cost-effective solutions for multi-protocol applications. Its versatile design supports RS232, RS422, and RS485 protocols, reducing the need for additional components. This flexibility increases design efficiency and lowers overall system costs.
The device combines high-speed data transmission, low power consumption, and a compact surface-mount package. These features optimize performance while minimizing energy usage and space requirements. Its wide temperature and voltage ranges ensure reliable operation across various environments, further enhancing its value.
Advantage | Description |
|---|---|
Versatile multi-protocol support | Increases design flexibility for various applications. |
High-speed data transmission | Supports data rates up to 20Mbps. |
Low power consumption | Ensures energy-efficient operation. |
Wide temperature and voltage ranges | Provides robust performance in diverse environments. |
Compact surface-mount package | Optimizes PCB layouts for space-constrained designs. |
By combining performance, reliability, and cost-efficiency, the XR3160EIUTR-F proves to be an excellent choice for multi-protocol applications.
Practical Applications of the XR3160EIUTR-F
The XR3160EIUTR-F demonstrates its versatility across a wide range of industries. Its advanced features make it a reliable choice for applications requiring efficient and robust serial communication.
Industrial Automation and Control Systems
In industrial automation, the XR3160EIUTR-F plays a crucial role in enabling seamless communication between devices. It supports RS232, RS422, and RS485 protocols, making it suitable for diverse applications such as programmable logic controllers (PLCs), industrial sensors, and robotics. Its high-speed data transmission ensures real-time communication, which is essential for controlling machinery and monitoring processes.
The following table highlights common industrial automation applications:
|
The device's compact design and low power consumption further enhance its suitability for space-constrained and energy-sensitive environments.
Telecommunications and Networking
The XR3160EIUTR-F improves communication efficiency in telecommunications and networking by offering multi-protocol support and high-speed data rates. It ensures reliable data transfer over long distances, making it ideal for network routers, switches, and gateways. Its wide operating temperature range and robust noise immunity allow it to perform well in challenging environments.
Feature | Description |
|---|---|
Multi-protocol support | Supports RS232, RS422, and RS485 communication standards |
Data rates | Up to 20Mbps |
Low power consumption | Energy-efficient operation |
Wide operating temperature range | -40°C to 85°C |
Compact design | Small 20-SSOP package for space-constrained designs |
These features make the XR3160EIUTR-F a dependable solution for telecommunications infrastructure and networking equipment.
Consumer Electronics and IoT Devices
In consumer electronics and IoT devices, the XR3160EIUTR-F facilitates communication between components, ensuring efficient data exchange. Its compact size and low power requirements make it ideal for smart devices, gaming consoles, and IoT applications. The device's ability to operate across a wide voltage range enhances its compatibility with various systems.
Application Area |
|---|
Industrial automation and control systems |
Building automation and security systems |
Metering and monitoring applications |
Embedded systems and IoT devices |
Robotics and motion control applications |
The XR3160EIUTR-F's versatility and reliability make it a valuable component in modern consumer electronics and IoT ecosystems.
Automotive and Medical Applications
The XR3160EIUTR-F enhances communication systems in both automotive and medical fields. Its multi-protocol support and robust design make it a reliable choice for these demanding industries.
In automotive applications, the XR3160EIUTR-F facilitates seamless data exchange between vehicle systems. It supports protocols like RS232 and RS485, which are essential for diagnostic tools and in-vehicle communication networks. For example, On-Board Diagnostics (OBD-II) systems rely on serial communication to transmit data from the vehicle's sensors to diagnostic devices. The device's high-speed data rates ensure real-time performance, which is critical for monitoring engine health and other vital parameters. Its wide operating temperature range (-40°C to 85°C) ensures reliable operation in harsh automotive environments.
In the medical field, the XR3160EIUTR-F plays a key role in enabling communication between medical devices. Patient monitors, infusion pumps, and diagnostic equipment often require serial communication to transfer data accurately and efficiently. The device's low power consumption makes it suitable for portable medical instruments, where energy efficiency is crucial. Additionally, its compact design allows integration into space-constrained medical devices without compromising performance. The XR3160EIUTR-F ensures reliable data transmission, which is vital for patient safety and accurate diagnostics.
These features make the XR3160EIUTR-F a versatile solution for automotive and medical applications, where reliability and performance are non-negotiable.
Building Automation and Robotics
The XR3160EIUTR-F simplifies communication in building automation and robotics by supporting multiple protocols and offering high-speed data transmission. Its advanced features make it a valuable component in these rapidly evolving fields.
In building automation, the device enables efficient communication between systems like HVAC, lighting, and security. It supports RS485, which is widely used in building control networks due to its ability to connect multiple devices over long distances. The XR3160EIUTR-F ensures stable communication even in electrically noisy environments, enhancing the reliability of automated systems. Its compact design and low power consumption make it ideal for energy-efficient buildings.
In robotics, the XR3160EIUTR-F facilitates communication between controllers, sensors, and actuators. Its high-speed data rates (up to 20Mbps) ensure real-time performance, which is essential for precise motion control and decision-making. The device's robust noise immunity and wide operating temperature range make it suitable for industrial robotics, where environmental conditions can be challenging.
The table below highlights the XR3160EIUTR-F's application areas:
Application Areas |
|---|
Industrial automation and control systems |
Building automation and security systems |
Metering and monitoring applications |
Embedded systems and IoT devices |
Robotics and motion control applications |
The XR3160EIUTR-F's versatility and reliability make it an indispensable tool for building automation and robotics, where efficient communication is key to success.
The XR3160EIUTR-F simplifies serial communication by combining RS232, RS422, and RS485 protocols into one compact solution. Its high-speed data rates, low power consumption, and robust design ensure reliable performance across diverse environments. Engineers benefit from its multi-protocol support, which reduces design complexity and enhances system flexibility.
The table below highlights its key features and benefits:
Feature | Benefit |
|---|---|
Multi-protocol support | Increases design flexibility |
High-speed data transmission | Supports data rates up to 20Mbps |
Low power consumption | Ensures energy-efficient operation |
Wide temperature and voltage range | Provides robust performance in diverse environments |
Compact surface-mount package | Optimizes PCB layouts for space efficiency |
The XR3160EIUTR-F stands out as a cost-effective and versatile choice for applications ranging from industrial automation to consumer electronics. Its proven reliability and ease of integration make it an excellent option for enhancing communication efficiency and system performance.
What makes the XR3160EIUTR-F unique compared to other transceivers?
The XR3160EIUTR-F supports RS232, RS422, and RS485 protocols in one device. Its high-speed data rates, low power consumption, and compact design make it versatile for various applications. Engineers benefit from its seamless integration and robust performance in challenging environments.
Can the XR3160EIUTR-F operate in extreme temperatures?
Yes, the XR3160EIUTR-F operates reliably in temperatures ranging from -40°C to 85°C. This wide range ensures its suitability for industrial, automotive, and outdoor applications where environmental conditions can vary significantly.
How does the XR3160EIUTR-F improve noise immunity?
The XR3160EIUTR-F features a 30mV receiver hysteresis, which enhances noise immunity. This design minimizes signal interference, ensuring stable communication even in electrically noisy environments like factories or industrial plants.
Is the XR3160EIUTR-F suitable for space-constrained designs?
Yes, the XR3160EIUTR-F comes in a compact 20-SSOP package. This small form factor optimizes PCB layouts, making it ideal for devices with limited space, such as IoT gadgets, medical instruments, and consumer electronics.
What industries benefit most from the XR3160EIUTR-F?
The XR3160EIUTR-F serves industries like industrial automation, telecommunications, automotive, medical, and building automation. Its multi-protocol support and reliable performance make it a valuable component in diverse applications, from robotics to smart devices.
Tip: For more details on integrating the XR3160EIUTR-F into your project, consult its datasheet or contact the manufacturer for technical support.
