Why MCP1640T-I/CHY Powers Consumer and Auto Tech

The MCP1640T-I/CHY is a low-voltage, high-efficiency boost converter designed to power modern consumer and automotive technologies. Its compact design and wide input voltage range make it ideal for space-constrained applications. Low quiescent current minimizes standby power consumption, allowing devices to operate longer on a single battery charge. High efficiency ensures effective energy use, reducing waste and extending operational time. As industries recover from supply chain disruptions, the demand for DC-DC converters like this continues to grow, driven by the rise of electric and hybrid vehicles. In 2023, the market value reached $1,614.48 million, with a projected CAGR of 31.73% through 2030.

Key Takeaways

• The MCP1640T-I/CHY works efficiently, reaching up to 95%. This helps devices last longer using less energy.

• Its low resting current of 30 μA saves battery power. This makes it great for wearables and smart devices.

• The input voltage range （3.0V to 5.5V） works with many power sources. This makes it very flexible.

• The small SOT-23 design fits in tiny spaces. It is perfect for gadgets like smartwatches and car systems.

• Strong heat performance keeps it working in hot or cold places. This is important for car technology.

Key Features of the MCP1640T-I/CHY

High Efficiency for Power Optimization

The MCP1640T-I/CHY achieves up to 95% efficiency, making it one of the most energy-efficient boost converters available. This high efficiency minimizes energy loss during power conversion, ensuring that devices operate longer on the same power source. Whether used in portable electronics or automotive systems, this feature reduces heat generation and improves overall system performance.

This level of efficiency is particularly beneficial for battery-powered devices, where every bit of saved energy translates to extended usage time. By optimizing power usage, the MCP1640T-I/CHY supports the growing demand for sustainable and energy-conscious technologies.

Low Quiescent Current for Extended Battery Life

The MCP1640T-I/CHY features a low quiescent current of just 30 μA, which is significantly lower than many industry standards. This low standby power consumption ensures that devices remain operational for longer periods, even when in idle mode.

This characteristic makes the MCP1640T-I/CHY ideal for applications like wearables, IoT devices, and medical equipment, where prolonged battery life is critical. For example, fitness trackers and glucose meters benefit from this feature by maintaining functionality without frequent battery replacements.

Wide Input Voltage Range for Versatility

The MCP1640T-I/CHY supports an input voltage range of 3.0V to 5.5V, making it compatible with a variety of power sources, including single-cell batteries and energy-harvesting systems. Its adjustable output voltage, ranging from 0.8V to VIN, adds further flexibility, allowing it to meet the needs of diverse applications.

This wide voltage range enhances its usability in both consumer and automotive technologies. For instance, it can power IoT nodes in smart homes or sensors in automotive systems, ensuring stable performance across varying input conditions.

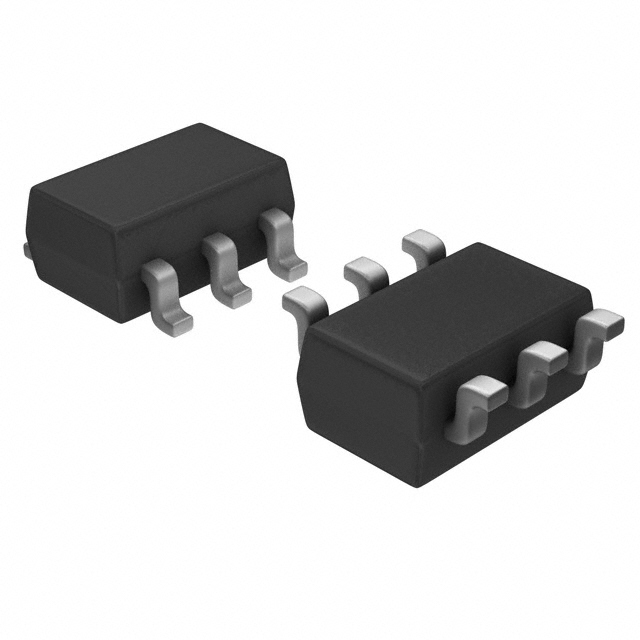

Compact SOT-23 Package for Space-Constrained Designs

The MCP1640T-I/CHY features a compact SOT-23 package, making it ideal for space-constrained designs. Engineers often face challenges when integrating components into small devices. The SOT-23 package addresses these challenges by offering a small footprint without compromising performance. This compact design allows for more efficient use of space in devices like wearables and portable electronics.

Tip: The SOT-23 package is perfect for applications where space is at a premium, such as in smartwatches and fitness trackers.

The small size of the SOT-23 package also contributes to the overall weight reduction of electronic devices. This is particularly beneficial in consumer electronics, where lightweight designs enhance user comfort and portability. By using the MCP1640T-I/CHY, designers can create sleek and efficient products that meet modern consumer demands.

Robust Thermal Performance for Reliability

Robust thermal performance is another key feature of the MCP1640T-I/CHY. It ensures reliable operation even under varying temperature conditions. This is crucial for both consumer and automotive applications, where devices may be exposed to extreme temperatures. The MCP1640T-I/CHY maintains stable performance, preventing overheating and ensuring longevity.

Note: Effective thermal management is essential for maintaining device reliability and performance.

The MCP1640T-I/CHY includes thermal shutdown protection, which automatically turns off the device if it overheats. This feature protects the device from damage and extends its lifespan. In automotive applications, where temperature fluctuations are common, this robust thermal performance ensures consistent operation. It supports the reliability of systems like dashboard cameras and keyless entry systems.

By combining a compact design with robust thermal performance, the MCP1640T-I/CHY offers a versatile solution for modern electronic devices. Its features make it a preferred choice for engineers looking to optimize space and ensure reliability in their designs.

Benefits of MCP1640T-I/CHY in Consumer Applications

Prolonged Battery Life in Portable Devices

The MCP1640T-I/CHY enhances battery life in portable devices by optimizing power management. Its high efficiency ensures minimal energy loss during power conversion, which is crucial for devices like digital cameras and e-readers. These devices require a stable power supply to function effectively, even as the battery discharges. By maintaining consistent performance, the MCP1640T-I/CHY allows users to enjoy extended usage without frequent recharging. This feature is especially valuable in today’s fast-paced world, where portable electronics play a vital role in daily life.

Tip: Devices with prolonged battery life reduce the need for frequent replacements, contributing to sustainability and cost savings.

Compact and Lightweight Consumer Electronics

The compact design of the MCP1640T-I/CHY benefits lightweight consumer electronics by enabling efficient power conversion in a small form factor. This design is particularly advantageous for portable devices where space is limited.

• The small size supports integration into devices like digital cameras and e-readers.

• It helps maintain a stable power supply during battery discharge.

• The lightweight nature enhances portability and user convenience.

This compactness allows engineers to create sleek, modern designs without compromising functionality. Consumers benefit from devices that are not only powerful but also easy to carry and use.

Enhanced Performance in Wearables and IoT Devices

Wearables and IoT devices demand reliable power management to ensure consistent performance. The MCP1640T-I/CHY meets these requirements with features that enhance efficiency and stability.

These features make the MCP1640T-I/CHY an ideal choice for fitness trackers, smartwatches, and connected home devices. By delivering stable power, it ensures these technologies operate seamlessly, enhancing user experience and device reliability.

Compatibility with Low-Voltage Consumer Gadgets

The MCP1640T-I/CHY excels in powering low-voltage consumer gadgets, making it a versatile choice for modern electronics. Its ability to operate efficiently with input voltages as low as 3.0V ensures compatibility with a wide range of devices. This feature is particularly valuable for gadgets that rely on single-cell batteries or energy-harvesting systems.

Low-voltage devices, such as wireless sensors, Bluetooth modules, and portable medical equipment, benefit greatly from the MCP1640T-I/CHY. These devices often require a stable output voltage to function reliably, even as the input voltage fluctuates. The MCP1640T-I/CHY delivers consistent performance, ensuring uninterrupted operation.

Tip: Designers can use the MCP1640T-I/CHY to extend the lifespan of low-voltage gadgets by optimizing power usage.

The adjustable output voltage, ranging from 0.8V to VIN, adds flexibility for engineers. This adaptability allows the chip to meet the specific voltage requirements of various applications. For example, it can power smart home devices like motion detectors or temperature sensors, which demand precise voltage regulation.

The compact SOT-23 package further enhances compatibility with space-constrained designs. Engineers can integrate the MCP1640T-I/CHY into small gadgets without sacrificing performance. This makes it ideal for lightweight consumer electronics, such as fitness trackers and smartwatches.

By combining efficiency, flexibility, and compactness, the MCP1640T-I/CHY ensures reliable power management for low-voltage consumer gadgets. Its features empower engineers to create innovative, energy-efficient products that meet the demands of modern users.

Benefits of MCP1640T-I/CHY in Automotive Applications

Reliable Operation in Extreme Temperatures

Automotive systems often operate in environments with extreme temperature fluctuations. The MCP1640T-I/CHY ensures reliable performance in such conditions by maintaining stable power delivery. Its robust thermal performance prevents overheating, even in high-temperature scenarios. This feature is critical for automotive electronics like dashboard cameras and keyless entry systems, which must function consistently in both hot and cold climates. By ensuring thermal stability, the MCP1640T-I/CHY supports the longevity and reliability of these systems.

Note: Reliable operation in extreme temperatures reduces the risk of system failures, enhancing overall vehicle safety and performance.

Compliance with Automotive-Grade Standards

Automotive applications demand components that meet strict industry standards. The MCP1640T-I/CHY complies with these requirements, making it a trusted choice for automotive engineers. Its design adheres to rigorous quality and reliability benchmarks, ensuring compatibility with automotive-grade systems. This compliance guarantees that the boost converter performs reliably under the demanding conditions of automotive environments. Engineers can confidently integrate the MCP1640T-I/CHY into systems like infotainment modules and advanced driver-assistance systems (ADAS).

Tip: Choosing components that meet automotive-grade standards simplifies the certification process for vehicle manufacturers.

Efficient Power Management for Sensors and Modules

Modern vehicles rely on numerous sensors and electronic modules to enhance functionality and safety. The MCP1640T-I/CHY improves power management efficiency by providing a consistent power supply, even when input voltages fluctuate. This capability is essential for automotive systems, where voltage variations are common due to battery load changes or environmental factors. By ensuring stable power delivery, the MCP1640T-I/CHY supports the reliable operation of sensors and modules, such as tire pressure monitoring systems (TPMS) and engine control units (ECUs).

Efficient power management also reduces energy waste, contributing to the overall energy efficiency of the vehicle. This feature aligns with the growing demand for sustainable automotive technologies, making the MCP1640T-I/CHY a valuable component in modern vehicle designs.

Callout: Stable power management enhances the performance of critical automotive systems, ensuring smooth and reliable operation.

Space-Saving Design for Automotive Electronics

Automotive electronics often require compact components to fit within limited spaces. The MCP1640T-I/CHY addresses this challenge with its small SOT-23 package. This design allows engineers to integrate the boost converter into tight spaces without sacrificing performance. Its compact size supports the development of lightweight and efficient automotive systems.

Tip: Compact components like the MCP1640T-I/CHY help reduce the overall size and weight of electronic modules, improving vehicle efficiency.

The SOT-23 package measures just a few millimeters, making it ideal for space-constrained applications. Engineers can use this boost converter in systems such as dashboard cameras, keyless entry modules, and tire pressure monitoring systems (TPMS). These systems often operate in confined areas, where every millimeter of space matters.

The compact design also simplifies the layout of printed circuit boards (PCBs). Engineers can place the MCP1640T-I/CHY closer to other components, reducing trace lengths and improving signal integrity. This feature enhances the reliability of automotive electronics, especially in systems that require precise power delivery.

Callout: A smaller PCB footprint allows manufacturers to create more streamlined and aesthetically pleasing designs for automotive interiors.

By combining a small form factor with robust functionality, the MCP1640T-I/CHY supports the growing demand for compact and efficient automotive electronics. Its space-saving design enables engineers to create innovative solutions that meet the needs of modern vehicles.

Real-World Applications of MCP1640T-I/CHY

Wearable Technology and Fitness Trackers

Wearable devices like fitness trackers and smartwatches rely on efficient power management to deliver consistent performance. The MCP1640T-I/CHY plays a crucial role in these devices by optimizing energy use and extending battery life. Its compact SOT-23 package allows seamless integration into small, lightweight designs, which are essential for wearables.

Fitness trackers, for instance, require stable power to monitor heart rate, steps, and other metrics throughout the day. The MCP1640T-I/CHY ensures these devices operate reliably, even as battery levels drop. Its low quiescent current minimizes energy consumption during idle periods, further enhancing battery longevity. This makes it an ideal choice for wearables that prioritize portability and long-lasting performance.

Tip: The MCP1640T-I/CHY supports the development of sleek, energy-efficient wearables that meet modern consumer demands.

IoT Devices and Smart Home Systems

The MCP1640T-I/CHY enhances the functionality of IoT devices and smart home systems by providing efficient power management. These devices often operate on battery power and require a stable energy supply to function effectively.

• The MCP1640T-I/CHY ensures long battery life, reducing the need for frequent replacements.

• Its high efficiency supports low-power operations, making it suitable for devices like motion detectors and temperature sensors.

• The compact design allows integration into space-constrained systems, such as smart thermostats and security cameras.

By delivering consistent power under varying input conditions, the MCP1640T-I/CHY ensures IoT devices remain reliable and responsive. This capability is critical for smart home systems, where uninterrupted operation enhances user convenience and safety.

Automotive Electronics like Dash Cams and Keyless Entry

Automotive electronics demand components that provide reliable power in compact designs. The MCP1640T-I/CHY meets these requirements, making it a valuable addition to systems like dash cams and keyless entry modules.

Dash cams, for example, require a stable power supply to record high-quality footage during vehicle operation. The MCP1640T-I/CHY ensures consistent performance, even in fluctuating voltage conditions. Its compact SOT-23 package also supports space-saving designs, which are essential for automotive interiors.

Keyless entry systems benefit from the MCP1640T-I/CHY's low quiescent current, which minimizes energy consumption during standby periods. This feature extends battery life, ensuring the system remains operational for longer durations.

Callout: The MCP1640T-I/CHY supports the development of reliable, energy-efficient automotive electronics that enhance vehicle functionality.

Energy Harvesting Systems in Consumer and Automotive Use

Energy harvesting systems capture and convert ambient energy into usable electrical power. These systems rely on efficient components to maximize energy conversion and storage. The MCP1640T-I/CHY plays a vital role in these applications by providing stable power management and high efficiency.

Consumer Applications of Energy Harvesting

In consumer electronics, energy harvesting enables devices to operate without frequent battery replacements. The MCP1640T-I/CHY supports solar-powered gadgets, such as outdoor sensors and wireless keyboards. Its ability to step up low voltages from photovoltaic cells ensures consistent performance, even in low-light conditions.

Thermoelectric generators (TEGs) also benefit from the MCP1640T-I/CHY. These devices convert heat into electricity, powering small electronics like wearables or IoT nodes. The boost converter’s wide input voltage range (3.0V to 5.5V) and adjustable output voltage make it adaptable to varying energy sources.

Tip: Designers can use the MCP1640T-I/CHY to create self-sustaining devices that reduce reliance on traditional batteries.

Automotive Applications of Energy Harvesting

In automotive systems, energy harvesting improves efficiency and reduces energy waste. The MCP1640T-I/CHY powers sensors and modules that rely on harvested energy. For example, TEGs in exhaust systems capture heat to power tire pressure monitoring systems (TPMS) or auxiliary sensors.

Solar panels integrated into vehicles also use the MCP1640T-I/CHY to step up voltage for charging small electronics. Its compact SOT-23 package fits seamlessly into space-constrained automotive designs.

Callout: The MCP1640T-I/CHY enables innovative energy harvesting solutions, supporting sustainability in consumer and automotive technologies.

By optimizing energy use, the MCP1640T-I/CHY empowers engineers to design efficient, eco-friendly systems for modern applications.

The MCP1640T-I/CHY delivers a compact, efficient, and reliable solution for powering modern technologies. Its high efficiency and low quiescent current extend battery life in devices like digital cameras, e-readers, and portable medical equipment. The boost converter ensures stable power delivery, even in harsh environments, making it ideal for automotive systems such as infotainment modules and GPS units.

Key takeaways from real-world applications highlight its versatility:

• Enhances power management in sensor nodes and data loggers.

• Provides efficient energy conversion in consumer electronics.

• Supports reliable performance in portable medical devices.

The MCP1640T-I/CHY’s robust features, including thermal shutdown and short-circuit protection, make it a trusted choice for engineers designing portable electronics, IoT devices, and automotive systems. Its adaptability and reliability position it as a cornerstone for modern power management needs.

What is the primary function of the MCP1640T-I/CHY?

The MCP1640T-I/CHY is a high-efficiency boost converter. It steps up low input voltages to provide a stable output voltage. This makes it ideal for powering devices like wearables, IoT gadgets, and automotive electronics.

How does the MCP1640T-I/CHY improve battery life?

Its low quiescent current (30 μA) minimizes power consumption during idle periods. High efficiency (up to 95%) reduces energy loss during operation. These features extend battery life in portable devices and low-power systems.

Can the MCP1640T-I/CHY handle extreme temperatures?

Yes, it operates reliably in extreme temperatures. Its robust thermal performance and built-in thermal shutdown protection ensure consistent functionality in both consumer and automotive applications.

What makes the MCP1640T-I/CHY suitable for compact designs?

The MCP1640T-I/CHY comes in a small SOT-23 package. This compact form factor allows integration into space-constrained devices like fitness trackers, smartwatches, and automotive modules.

Is the MCP1640T-I/CHY compatible with energy-harvesting systems?

Yes, it supports energy-harvesting systems like solar panels and thermoelectric generators. Its wide input voltage range (3.0V to 5.5V) and adjustable output voltage make it adaptable to various energy sources.

Tip: Use the MCP1640T-I/CHY to design self-sustaining devices that reduce reliance on traditional batteries.
