A Guide to MCP1700T-3002E/MB for Embedded System Developers

The MCP1700T-3002E/MB is a low dropout voltage regulator designed for applications requiring efficient power management. It belongs to the MCP1700 family, known for its exceptional performance in low-power systems. This regulator ensures stable voltage output while minimizing energy loss, making it indispensable for embedded system developers.

The MCP1700 excels in low-power consumption scenarios. Its low quiescent current of 4µA and a dropout voltage of 178mV enable efficient operation in battery-powered devices and energy-harvesting systems. Developers rely on the MCP1700 low dropout regulator for its reliability, which includes overcurrent, overtemperature, and short-circuit protection. These features ensure dependable performance in critical applications like IoT devices, automotive systems, and industrial controls.

The MCP1700T-3002E/MB supports a wide operating temperature range of -40°C to 125°C, making it suitable for harsh environments. Its high accuracy of 2% for output voltage ensures consistent performance in sensitive systems. These attributes make it a preferred choice for developers seeking efficient and reliable power regulation.

Key Takeaways

• The MCP1700T-3002E/MB works well for battery devices. It uses very little power, only 2.0 µA, helping batteries last longer.

• With a low voltage drop of 178mV, it keeps voltage steady. This makes it great for devices with low input power.

• It has safety features like overcurrent and overheating protection. These make it more reliable for important uses.

• The regulator works in tough conditions, from -40°C to 125°C. It stays stable in different environments.

• Its small size and fixed 3.0V output make it popular. It’s used in embedded systems, IoT gadgets, and portable electronics.

Features and Specifications of MCP1700T-3002E/MB

Low Dropout Voltage and Efficiency

The MCP1700T-3002E/MB offers a low dropout voltage of 178mV, which ensures efficient operation even in low-input-voltage environments. This feature allows the regulator to maintain stable voltage output while minimizing energy loss. Embedded systems, especially those powered by batteries or energy-harvesting sources, benefit significantly from this efficiency. The MCP1700 achieves this performance without generating excessive heat, making it ideal for compact and thermally sensitive designs.

The regulator also provides high output voltage accuracy, with a tolerance of 2%. This precision ensures reliable voltage regulation in critical applications such as IoT devices and automotive systems. The MCP1700’s compliance with RoHS3 standards and its lead-free design further enhance its appeal for environmentally conscious developers.

Low Quiescent Current for Battery-Powered Devices

The MCP1700T-3002E/MB excels in applications requiring low power consumption. Its typical quiescent current of 2.0 µA ensures minimal energy usage during standby or idle states. This characteristic makes it a preferred choice for battery-powered devices like wearables, IoT modules, and portable healthcare equipment. By reducing power consumption, the MCP1700 extends battery life and enhances the overall efficiency of the system.

Compared to similar regulators, such as the MCP1703T-3302E/MB, the MCP1700 stands out with its ultra-low quiescent current. This advantage makes it particularly suitable for low-power applications where energy efficiency is critical.

• Key highlights of the MCP1700’s low quiescent current:

  • Typical value: 2.0 µA

  • Ideal for battery-powered and portable devices

  • Reduces heat generation and energy waste

Output Voltage Stability and Range

The MCP1700T-3002E/MB provides a fixed output voltage of 3.0V, supporting a wide range of embedded systems. Its ability to deliver a maximum output current of 250mA ensures compatibility with various low-power microcontrollers and sensors. The regulator operates within an input voltage range of 2.3V to 6V, making it versatile for different power sources.

The MCP1700 maintains stable voltage output across its entire operating temperature range of -40°C to 125°C. This stability ensures reliable performance in harsh environments, such as industrial control systems and automotive electronics. Developers can rely on the MCP1700 for consistent voltage regulation, even under fluctuating input conditions.

The MCP1700 datasheet provides detailed information on these specifications, helping developers optimize their designs for low power consumption and efficient voltage regulation.

Thermal Protection and Operating Temperature Range

The MCP1700T-3002E/MB includes robust thermal protection features that ensure reliable performance in extreme conditions. These features safeguard the device and connected components from potential damage caused by overheating or electrical faults. The regulator incorporates overcurrent, overtemperature, and short-circuit protection mechanisms. These mechanisms enhance the durability and reliability of the device in demanding applications.

The MCP1700T-3002E/MB operates within a wide temperature range of -40°C to 125°C. This range makes it suitable for use in harsh environments, such as industrial control systems and automotive electronics. Its compliance with RoHS3 standards and lead-free design further enhances its appeal for environmentally conscious developers. These features make the MCP1700T-3002E/MB a reliable choice for embedded systems requiring stable voltage regulation under varying environmental conditions.

Compact Design and Package Options

The MCP1700T-3002E/MB is designed with compactness in mind, making it ideal for portable and space-constrained applications. Its small dimensions allow developers to integrate it seamlessly into compact devices without compromising performance. The regulator's SOT89-3 package offers a balance between size and thermal performance, ensuring efficient heat dissipation in small enclosures.

The MCP1700T-3002E/MB provides a stable output voltage of 3V with high accuracy and low noise. Its ultra-low input-output voltage differential of 178mV and low quiescent current of 1.6µA enhance battery life, making it suitable for portable devices. Integrated short-circuit and over-temperature protection ensure reliability in compact designs. These attributes make the MCP1700T-3002E/MB a preferred choice for consumer electronics and industrial control systems.

The MCP1700T-3002E/MB combines efficiency, reliability, and compactness, making it an excellent solution for developers working on portable and embedded systems.

Pin Configuration and Electrical Layout

Pin Layout and Functions

The MCP1700T-3002E/MB features a simple pin configuration that simplifies electrical layout design. Its four pins provide essential connections for input, output, ground, and shutdown functionality. This straightforward design ensures easy integration into various embedded systems. The table below outlines the pin names and their respective functions:

The VIN pin accepts the input voltage, while the VOUT pin delivers the regulated output voltage. The GND pin serves as the ground connection, ensuring a stable reference point for the circuit. The SHDN pin allows developers to enable or disable the regulator, providing additional control over power management.

SOT-89 and Other Package Types

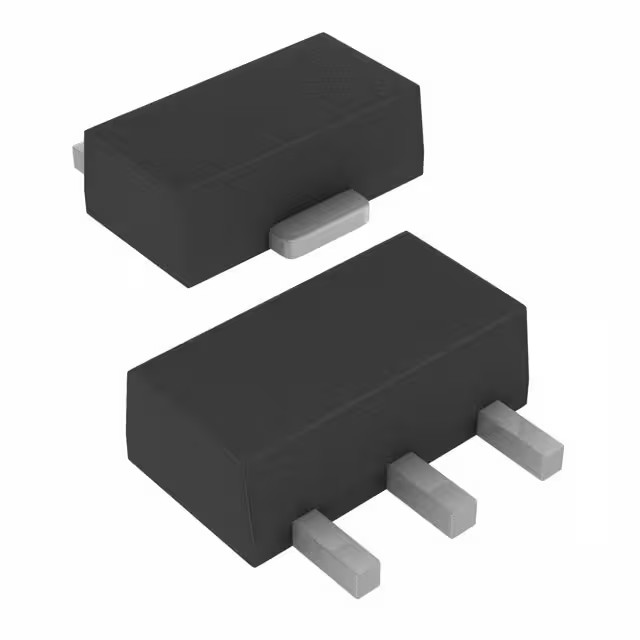

The MCP1700T-3002E/MB is available in the SOT-89 package, which balances compactness and thermal performance. This package type is ideal for space-constrained designs, such as portable devices and IoT modules. The SOT-89 package ensures efficient heat dissipation, even when the regulator operates at its maximum current capacity.

Other package options, such as the TO-92 and SOT-23, offer flexibility for different design requirements. The TO-92 package suits through-hole applications, while the SOT-23 package caters to ultra-compact designs. These options allow developers to choose the most suitable package for their specific applications.

Electrical Characteristics of the MCP1700T-3002E/MB

The MCP1700T-3002E/MB supports input voltages ranging from 2.3V to 6.0V, making it compatible with various power sources. It provides up to 250 mA of output current when the output voltage is 2.5V or higher. This capability ensures reliable voltage regulation for low-power microcontrollers and sensors.

Key electrical characteristics include:

• Input operating voltage range: 2.3V to 6.0V

• Maximum output current: 250 mA

• Low dropout voltage: 178 mV

The table below summarizes these specifications:

These characteristics, combined with the regulator's low quiescent current, make it an excellent choice for energy-efficient designs. The MCP1700 datasheet provides additional details to help developers optimize their circuits for precise voltage regulation.

MCP1700 Applications in Embedded Systems

IoT Devices and Wireless Modules

The MCP1700 plays a crucial role in powering IoT devices and wireless modules. Its low quiescent current and efficient voltage regulation make it ideal for battery-powered devices. Developers often use this regulator to extend battery life in sensors, wearables, and other portable devices. The MCP1700 provides a stable power supply to microcontroller-based systems, ensuring reliable operation in low-power applications.

• Common applications of the MCP1700 in IoT and wireless modules include:

  • Powering battery-operated devices with minimal energy consumption.

  • Supplying stable power to microcontrollers in embedded systems.

  • Supporting low-power applications requiring a fixed 3.0V supply.

The MCP1700 datasheet highlights its ability to maintain consistent performance in IoT environments. This capability ensures uninterrupted operation of wireless communication modules, such as Bluetooth and Zigbee devices.

Battery-Powered Systems and Wearables

The MCP1700T-3002E/MB enhances the performance of battery-powered systems and wearable devices. Its design minimizes power consumption and heat generation, making it suitable for portable applications. The regulator’s low quiescent current of 2.0 µA significantly extends battery life. Its low dropout voltage of 178mV ensures efficient voltage regulation, even under varying input conditions.

Key benefits for battery-powered systems include:

• Prolonged battery life due to ultra-low quiescent current.

• Efficient regulation with minimal energy loss.

• Fixed 3.0V output, ideal for low-power applications.

Wearable devices, such as fitness trackers and health monitors, benefit from the MCP1700’s compact design and reliable performance. Its ability to operate within a wide temperature range ensures durability in diverse environments.

Automotive and Industrial Control Systems

The MCP1700 provides reliable voltage regulation in automotive and industrial control systems. Its built-in short-circuit and over-temperature protection features enhance long-term reliability. These safeguards prevent damage from electrical faults, ensuring stable operation in demanding conditions.

The MCP1700 supports applications requiring stable voltage in harsh environments. Its high accuracy and low power consumption make it a preferred choice for automotive electronics and industrial control systems.

Energy Harvesting and Portable Healthcare Devices

The MCP1700T-3002E/MB plays a vital role in energy harvesting systems and portable healthcare devices. Its low dropout voltage ensures efficient power regulation, even when the input voltage is close to the output voltage. This capability makes it ideal for energy harvesting applications, such as solar-powered sensors and devices relying on ambient energy sources. The regulator’s ability to operate efficiently in low-voltage environments ensures uninterrupted functionality in systems where power availability fluctuates.

Portable healthcare devices, such as wearable health monitors and diagnostic equipment, benefit significantly from the MCP1700T-3002E/MB. Its low quiescent current minimizes energy consumption, extending battery life in devices that require continuous operation. The regulator’s compact design allows seamless integration into small medical devices, ensuring portability without compromising performance. Additionally, its thermal protection features enhance safety by preventing overheating, which is critical in healthcare applications.

Key advantages of the MCP1700T-3002E/MB in these applications include:

• Efficient power regulation in low-voltage environments.

• Extended battery life due to ultra-low quiescent current.

• Compact design for space-constrained devices.

• Reliable thermal protection for enhanced safety.

The MCP1700T-3002E/MB ensures stable voltage output, making it a dependable choice for energy harvesting systems and portable healthcare devices. Its robust features and efficient performance contribute to the reliability of these critical applications.

Microcontroller-Based Circuits and Smart Sensors

The MCP1700T-3002E/MB provides a stable power source for microcontroller-based circuits and smart sensors. Its fixed output voltage of 3.0V ensures consistent performance in low-power systems. The regulator’s low dropout voltage of 178mV allows efficient operation, even under varying input conditions. These features make it suitable for powering low-voltage integrated circuits and sensors in embedded systems.

Smart sensors, often used in IoT applications, rely on the MCP1700T-3002E/MB for efficient power management. The regulator’s low quiescent current of 2.0 µA reduces energy consumption, extending the operational life of battery-powered devices. Its built-in short-circuit protection safeguards both the regulator and connected components, ensuring reliable operation in sensitive systems.

The MCP1700T-3002E/MB supports various applications, including battery-powered devices and low-power systems. Its reliable performance and energy efficiency make it an essential component in microcontroller-based circuits and smart sensors.

Comparison with Other LDO Regulators

Advantages of the MCP1700T-3002E/MB

The MCP1700T-3002E/MB stands out among low dropout regulators due to its exceptional efficiency and reliability. Its low dropout voltage of 178mV ensures efficient operation, even in low-input-voltage environments. This feature makes it ideal for battery-powered devices and energy-harvesting systems. The regulator’s ultra-low quiescent current of 4μA significantly reduces energy consumption, extending the lifespan of batteries in portable applications.

The MCP1700 excels in maintaining stable voltage regulation across a wide temperature range of -40°C to 125°C. This capability ensures consistent performance in harsh environments, such as industrial control systems and automotive electronics. Its built-in protection features, including overcurrent and overtemperature safeguards, enhance its reliability in critical applications.

These attributes make the MCP1700 a preferred choice for developers seeking efficient and reliable voltage regulation in embedded systems.

Limitations and Trade-offs

While the MCP1700T-3002E/MB offers numerous advantages, it has certain limitations that may affect its suitability for specific applications.

• The maximum output current of 250mA restricts its use in scenarios requiring higher current levels.

• Its fixed output voltage of 3.0V limits its versatility in applications needing adjustable voltage levels.

• The low dropout voltage of 178mV may not suffice for all low-input-voltage applications, potentially impacting performance in certain situations.

These constraints make the MCP1700 more suitable for low-power applications, such as consumer electronics and industrial control systems, rather than high-demand scenarios.

Key Differences from Competing Regulators

The MCP1700T-3002E/MB differentiates itself from other regulators through its combination of efficiency, compact design, and robust protection features. Competing regulators often lack the ultra-low quiescent current of 4μA, which gives the MCP1700 a significant edge in energy efficiency. Its low dropout voltage of 178mV also ensures better performance in low-input-voltage environments compared to many alternatives.

Unlike some regulators that offer adjustable output voltages, the MCP1700 provides a fixed 3.0V output. While this may limit its flexibility, it simplifies design and ensures consistent performance in applications requiring precise voltage regulation. Additionally, the MCP1700’s wide operating temperature range and built-in protection mechanisms make it more reliable in harsh conditions than many competing products.

The MCP1700T-3002E/MB combines efficiency, reliability, and simplicity, making it a standout choice for developers working on low-power embedded systems.

Practical Implementation of MCP1700T-3002E/MB

Typical Application Circuits

The MCP1700 demonstrates its versatility through its use in various application circuits. Its low quiescent current and efficient voltage regulation make it suitable for a wide range of devices. Common applications include:

• Battery-powered devices, such as wearables and portable electronics, where energy efficiency is critical.

• Microcontroller systems that require a stable power source for reliable operation.

• Low-power applications needing a fixed 3.0V supply, such as IoT sensors and smart devices.

Primary applications of the MCP1700 include consumer electronics like smartphones and tablets, industrial control systems for automation, and automotive systems such as infotainment units. Secondary applications extend to medical devices, including patient monitors, and aerospace systems like navigation equipment. These examples highlight the MCP1700’s adaptability across industries.

Capacitor Selection and Requirements

Proper capacitor selection ensures optimal performance of the MCP1700. Both input and output capacitors play a crucial role in stabilizing the regulator and maintaining voltage accuracy. The recommended minimum output capacitance is 1 µF. Developers can choose from ceramic, tantalum, or aluminum electrolytic capacitors based on their design requirements.

Ceramic capacitors are preferred for their low equivalent series resistance (ESR) and compact size. Tantalum capacitors offer higher capacitance in small packages, while aluminum electrolytic capacitors provide cost-effective solutions for larger designs. Using the correct capacitor type ensures the MCP1700 operates efficiently in both input and output configurations.

PCB Layout Guidelines

A well-designed PCB layout enhances the performance and reliability of the MCP1700. Placing input and output capacitors close to the regulator minimizes noise and improves stability. Traces connecting the MCP1700 to the capacitors should be short and wide to reduce resistance and inductance.

Ground planes should be used to provide a stable reference point and improve thermal dissipation. Avoid routing high-current traces near sensitive signal lines to prevent interference. Following these guidelines ensures the MCP1700 delivers consistent voltage regulation in embedded systems.

Troubleshooting and Optimization Tips

Efficient use of the MCP1700T-3002E/MB requires careful attention to troubleshooting and optimization. Developers can follow these tips to ensure reliable performance and address common issues.

1. Identifying Common Issues

• Voltage Instability: Unstable output voltage often results from improper capacitor selection or placement.

• Overheating: Excessive heat generation may occur due to high input-output voltage differentials or insufficient thermal dissipation.

• Startup Failures: Incorrect input voltage levels or insufficient input capacitance can prevent the regulator from starting properly.

Tip: Always verify the input voltage range and ensure capacitors meet the recommended specifications.

2. Optimization Techniques

• Capacitor Placement: Place input and output capacitors as close as possible to the MCP1700. This minimizes noise and improves stability.

• Thermal Management: Use a PCB layout with adequate thermal vias and ground planes to dissipate heat effectively.

• Load Matching: Ensure the connected load does not exceed the regulator's maximum output current of 250mA.

3. Testing and Validation

• Use an oscilloscope to monitor the output voltage for fluctuations.

• Test the regulator under different load conditions to confirm stable performance.

• Measure the dropout voltage to ensure it remains within the specified range of 178mV.

4. Proactive Design Practices

Note: Regularly consult the MCP1700 datasheet for detailed electrical characteristics and design recommendations.

By following these troubleshooting and optimization tips, developers can maximize the performance and reliability of the MCP1700T-3002E/MB in their embedded systems. Proper design and testing ensure long-term stability and efficiency.

The MCP1700T-3002E/MB stands out as a reliable and efficient regulator for low-power embedded systems. Its low quiescent current of 2.0 µA and low dropout voltage of 178mV ensure energy-efficient performance, making it ideal for battery-powered devices and microcontroller-based projects. The fixed 3.0V output voltage provides stable power for low-voltage ICs, while built-in short-circuit protection enhances reliability.

The MCP1700 plays a vital role in advancing low-power embedded systems. Its efficient design supports applications like IoT devices, wearables, and energy-harvesting systems. Developers can rely on its robust features to create innovative, energy-efficient solutions. Exploring the MCP1700T-3002E/MB for future projects can unlock new possibilities in embedded system design.

1. What makes the MCP1700T-3002E/MB ideal for battery-powered devices?

The MCP1700T-3002E/MB features ultra-low quiescent current (2.0 µA) and a low dropout voltage (178mV). These characteristics reduce energy consumption and extend battery life. Its compact design and reliable voltage regulation make it perfect for portable devices like wearables and IoT modules.

2. Can the MCP1700T-3002E/MB handle harsh environmental conditions?

Yes, the MCP1700T-3002E/MB operates within a wide temperature range of -40°C to 125°C. It includes built-in thermal and overcurrent protection, ensuring stable performance in extreme conditions. This makes it suitable for automotive and industrial applications.

3. What type of capacitors should be used with the MCP1700T-3002E/MB?

Ceramic capacitors with low equivalent series resistance (ESR) are recommended. A minimum output capacitance of 1 µF ensures stability. Tantalum or aluminum electrolytic capacitors can also be used, depending on the design requirements.

4. How does the MCP1700T-3002E/MB compare to other LDO regulators?

The MCP1700T-3002E/MB offers superior energy efficiency with its ultra-low quiescent current (4 µA) and low dropout voltage (178mV). Its fixed 3.0V output simplifies design. Competing regulators often lack this combination of efficiency, reliability, and compactness.

5. What are the common applications of the MCP1700T-3002E/MB?

The MCP1700T-3002E/MB powers IoT devices, wearables, and microcontroller-based systems. It is also used in automotive electronics, industrial controls, and energy-harvesting systems. Its efficient voltage regulation supports low-power applications requiring a stable 3.0V supply.
