MX29LV640EBXEI-70G: The Memory Marvel Explained

The MX29LV640EBXEI-70G plays a vital role in modern consumer electronics. This NOR Flash memory chip powers devices like smartphones, smart TVs, and IoT systems by storing essential firmware and operating systems. Its reliability ensures smooth device functionality and secure data storage.

NOR Flash memory adoption continues to grow rapidly. The global market, valued at $2.5 billion in 2023, is projected to reach $4.8 billion by 2032, with a 7.6% annual growth rate. This trend highlights the increasing demand for advanced memory solutions like the MX29LV640EBXEI-70G in today’s technology-driven world.

Key Takeaways

The MX29LV640EBXEI-70G is a 64Mbit NOR Flash memory chip. It is important for devices like smartphones and smart TVs. It stores firmware and operating systems reliably.
Its fast access time of 70 nanoseconds allows quick data reading. This improves how devices work and makes them easier to use.
The chip works well with voltages between 2.7V and 3.6V. This helps save power, making it great for battery-powered devices.
It can handle 100,000 cycles and keeps data for 20 years. This makes it strong and dependable for long-term use in electronics.
The small TFBGA package helps with heat and electrical efficiency. This makes it perfect for small devices like IoT gadgets.

Overview of MX29LV640EBXEI-70G

Key Specifications

Memory capacity and speed

The MX29LV640EBXEI-70G offers a memory capacity of 64 megabits, making it suitable for storing firmware, operating systems, and other essential data. Its access time of 70 nanoseconds ensures quick data retrieval, which is critical for devices requiring fast boot times and seamless performance. The chip also supports a write cycle time of 70 nanoseconds, enabling efficient data updates.

Specification	Value
Chip Density (bit)	64M
Access Time (ns)	70
Write Cycle Time Word, Page (ns)	70
Maximum Erase Time (S)	65/Chip
Maximum Programming Time (ms)	160000/Chip
Minimum Endurance (Cycles)	100000 (Typ)

Voltage range and power efficiency

The MX29LV640EBXEI-70G operates within a voltage range of 2.7V to 3.6V, ensuring compatibility with various devices. Its active read current of 9mA and standby current of just 5µA contribute to excellent power efficiency. These features make it ideal for battery-operated devices, where energy conservation is essential.

Feature	Specification
Voltage Range	2.7V to 3.6V
Active Read Current	9mA (typical) at 5MHz
Standby Current	5µA (typical)

Compact TFBGA packaging

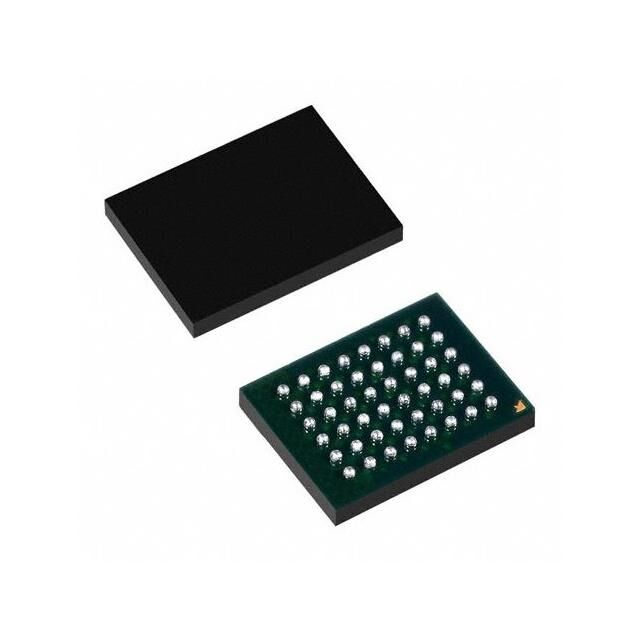

The TFBGA (Thin Fine-Pitch Ball Grid Array) packaging of the MX29LV640EBXEI-70G provides several advantages:

Increased Packaging Density: Its compact design allows for higher pin counts in smaller spaces, making it suitable for IoT devices and other space-constrained applications.
Enhanced Thermal Performance: The packaging efficiently dissipates heat, reducing the risk of overheating in high-performance devices.
Improved Electrical Performance: Shorter connections minimize signal interference, ensuring better data transfer rates and signal integrity.

How NOR Flash Memory Works

Non-volatile data storage

NOR Flash memory, including the MX29LV640EBXEI-70G, uses a floating gate transistor to store data. This gate retains charge even when the device is powered off, ensuring non-volatile storage. Writing data involves injecting charge into the floating gate, while erasing discharges it. This mechanism allows the chip to retain data reliably over extended periods.

Parallel memory interface benefits

The parallel memory interface in NOR Flash technology enhances performance by enabling simultaneous read and write operations. This feature ensures faster random access, making it ideal for applications requiring quick data retrieval. The interface also adheres to JEDEC standards, ensuring compatibility and reliability across various devices.

Applications in Consumer Electronics

Smartphones and Tablets

Firmware and bootloader storage

Smartphones and tablets rely on the MX29LV640EBXEI-70G for efficient firmware and bootloader storage. Its high-density 64Mbit capacity ensures ample space for critical system files. The non-volatile nature of this memory chip retains data even when the device powers off, ensuring reliability. Fast read and write operations allow quick access to stored data, which is essential for smooth device initialization. Compatibility with standard microcontrollers further enhances its versatility.

Feature	Description
High Density	Offers a large 64Mbit storage capacity, suitable for substantial memory needs.
Non-Volatile Storage	Retains data even when power is removed, ideal for firmware and bootloader.
Fast Read and Write Operations	Facilitates rapid access to stored data, enhancing performance.
Compatibility	Works with standard microcontrollers, providing versatile memory options.

Enhancing device performance

The MX29LV640EBXEI-70G significantly improves the performance of smartphones and tablets. Its fast read and write speeds ensure seamless multitasking and quick application launches. The wide operating voltage range accommodates diverse system requirements, making it suitable for various device architectures.

Feature	Description
High Density	Offers a large 64Mbit storage capacity, suitable for substantial memory needs.
Non-Volatile Storage	Retains data even when power is removed, ideal for code and data storage.
Wide Operating Voltage Range	Accommodates various system requirements with a broad voltage range.
Fast Read and Write Operations	Facilitates rapid access to stored data with high-speed capabilities.
Compatibility	Works with standard microcontrollers, providing versatile memory options.

Smart TVs and Set-Top Boxes

Operating system storage

The MX29LV640EBXEI-70G provides reliable storage for operating systems in smart TVs and set-top boxes. Its 64Mbit non-volatile memory ensures data retention without power, making it ideal for system storage. Fast read and write speeds enhance performance by enabling quick access to essential data.

The MX29LV640EBXEI-70G provides 64Mbit of non-volatile storage, ideal for operating systems in smart TVs and set-top boxes.
It retains data without power, ensuring reliability for system storage.
Fast read and write speeds enable quick access to data, enhancing performance in consumer electronics.

Supporting seamless updates

This memory chip plays a crucial role in enabling seamless updates for smart TVs. Its high-density storage accommodates firmware and application data. Fast read and write operations ensure quick updates, while compatibility with standard microcontrollers simplifies integration into smart TV systems.

The MX29LV640EBXEI-70G provides high-density non-volatile storage, essential for firmware and application data in smart TVs.
It features fast read and write operations, enabling quick updates.
The chip's compatibility with standard microcontrollers allows for easy integration into smart TV systems.

IoT Devices

Secure data storage

The MX29LV640EBXEI-70G offers robust security features, making it ideal for IoT devices. Its extra 128-word sector provides factory-locked and customer-lockable options for secure data storage. Sector group protection prevents unauthorized program or erase operations, while the chip unprotect function allows controlled code changes.

Security Feature	Description
Extra 128-word sector for security	Features factory locked and identifiable, and customer lockable
Sector Groups Protection	Prevents program or erase operation in the protected sector group
Chip Unprotect Function	Allows code changing by providing a chip unprotect function
Temporary Sector Group Unprotect	Enables code changing in previously protected sector groups

Reliable performance in smart home systems

The MX29LV640EBXEI-70G ensures reliable performance in smart home systems. Its high-density 64Mbit capacity supports applications requiring substantial memory space. Non-volatile storage retains data even without power, while fast read and write operations enable efficient data access. Compatibility with standard microcontrollers enhances its adaptability across various IoT devices.

High Density: Offers a large 64Mbit storage capacity, suitable for applications requiring substantial memory space.
Non-Volatile Storage: Retains data even when power is removed, ideal for code and data storage applications.
Wide Operating Voltage Range: Accommodates various system requirements.
Fast Read and Write Operations: Facilitates rapid access to stored data.
Compatibility: Compatible with standard microcontrollers and digital systems, providing versatile memory options.

Advantages of MX29LV640EBXEI-70G

Durability and Reliability

Long lifespan in consumer devices

The MX29LV640EBXEI-70G demonstrates exceptional durability, making it a reliable choice for consumer electronics. Its non-volatile storage ensures data retention even when power is removed, while its wide operating voltage range enhances compatibility with various systems. The chip's fast read and write operations improve performance, and its endurance of 100,000 cycles guarantees long-term reliability. Additionally, it operates effectively in temperatures ranging from -40°C to 85°C, ensuring functionality in diverse environments.

Feature	Description
Non-Volatile Storage	Retains data even when power is removed, ideal for code and data storage.
Wide Operating Voltage Range	Accommodates various system requirements, enhancing versatility.
Fast Read and Write Operations	Facilitates rapid access to stored data, improving performance.
Minimum Endurance (Cycles)	100,000 cycles, indicating long-term reliability.
Operating Temperature	-40°C to 85°C, ensuring functionality in diverse environments.

Resistance to data corruption

The MX29LV640EBXEI-70G resists data corruption over extended periods, making it a dependable memory solution. Its non-volatile storage ensures data integrity, while its 20-year data retention capability provides peace of mind for manufacturers and users alike.

Feature	Specification
Data Retention	20 years
Non-volatile Storage	Yes

Cost-Effectiveness and Energy Efficiency

Affordable for manufacturers

The MX29LV640EBXEI-70G offers a cost-effective solution for manufacturers by combining high performance with affordability. Its 64Mbit storage capacity supports applications requiring substantial memory space, while its non-volatile storage ensures data retention without additional power requirements. The chip's wide operating voltage range and compatibility with standard microcontrollers enhance its versatility, reducing design complexity and costs.

Feature	Description
High Density	Offers a large 64Mbit storage capacity, suitable for applications requiring substantial memory space.
Non-Volatile Storage	Retains data even when power is removed, ideal for code and data storage applications.
Wide Operating Voltage Range	Accommodates various system requirements, enhancing versatility.
Fast Read and Write Operations	Facilitates rapid access to stored data, improving efficiency.
Compatibility	Compatible with standard microcontrollers and digital systems, providing versatile memory options for designers.

Low power consumption for battery-operated devices

The MX29LV640EBXEI-70G excels in energy efficiency, making it ideal for battery-operated devices. Its active read current of 9mA and standby current of just 5µA minimize power consumption, extending battery life in portable electronics. This low power requirement ensures that devices remain operational for longer periods, enhancing user satisfaction.

Power Consumption Type	Value
Active Read Current	9mA
Standby Current	5µA

The MX29LV640EBXEI-70G stands out as a dependable memory solution for consumer electronics. Its high-density storage, non-volatile nature, and fast read and write operations make it essential for modern devices. The chip supports a wide range of applications, from embedded systems to consumer electronics like set-top boxes and digital cameras.

Feature/Application	Description
High Density	Offers a large 64Mbit storage capacity, suitable for substantial memory needs.
Non-Volatile Storage	Retains data without power, ideal for code and data storage applications.
Wide Operating Voltage Range	Accommodates various system requirements with a broad voltage range.
Fast Read and Write	Facilitates rapid access to stored data with high-speed operations.
Compatibility	Works with standard microcontrollers and digital systems for versatile options.
Embedded Systems	Commonly used for program and data storage in embedded systems.
Consumer Electronics	Suitable for devices like set-top boxes, digital cameras, and audio players.

This memory chip has driven innovation in the electronics industry. Its high-density storage and fast operations enhance device performance. It is widely used in set-top boxes, digital cameras, and audio players, showcasing its versatility.

High-density non-volatile storage suitable for various applications.
Commonly used in consumer electronics like set-top boxes, digital cameras, and audio players.
Fast read and write operations enhance performance in electronic devices.

The MX29LV640EBXEI-70G continues to play a pivotal role in advancing technology. Its reliability, efficiency, and adaptability make it a true "memory marvel."

What makes the MX29LV640EBXEI-70G different from other memory chips?

The MX29LV640EBXEI-70G stands out due to its 64Mbit capacity, fast 70ns access time, and low power consumption. Its TFBGA packaging enhances thermal and electrical performance, making it ideal for compact, high-performance devices.

Can the MX29LV640EBXEI-70G be used in battery-operated devices?

Yes, its low active read current (9mA) and standby current (5µA) make it highly energy-efficient. These features extend battery life, making it suitable for portable electronics like smartphones and IoT devices.

How does the MX29LV640EBXEI-70G ensure data security?

The chip includes a 128-word security sector with factory-locked and customer-lockable options. Sector group protection prevents unauthorized changes, while temporary unprotect functions allow controlled updates.

Is the MX29LV640EBXEI-70G compatible with all microcontrollers?

The chip adheres to JEDEC standards, ensuring broad compatibility with most microcontrollers. Its wide voltage range (2.7V to 3.6V) further supports integration into diverse systems.

What is the lifespan of the MX29LV640EBXEI-70G?

The chip offers a minimum endurance of 100,000 cycles and retains data for up to 20 years. Its operating temperature range (-40°C to 85°C) ensures durability in various environments.
