Understanding OP07CP Operational Amplifiers for Audio Processing

Audio systems demand precision and clarity to deliver high-quality sound. The op07cp operational amplifier excels in this domain by offering low noise and exceptional stability. Its ability to amplify signals with minimal distortion ensures accurate sound reproduction. These features make it an essential component for achieving superior audio performance in modern systems.

Key Takeaways

• The OP07CP op-amp has low noise and high accuracy, perfect for clear audio systems.

• Its broad input range and small offset voltage allow precise signal boosting, keeping sound quality intact.

• The OP07CP is stable and works well in tough temperatures, making it dependable for many audio uses.

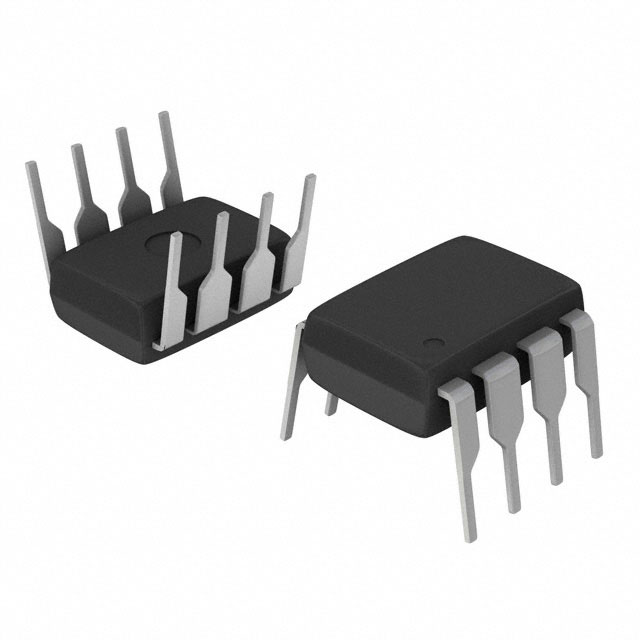

Overview of the OP07CP Operational Amplifier

Key Features of the OP07CP

The OP07CP operational amplifier stands out due to its advanced features, making it a reliable choice for audio applications. Its low offset voltage of just 75µV ensures precise voltage measurements, critical for maintaining signal accuracy. The low drift of 1.3µV/°C guarantees stable performance even under fluctuating temperatures. With a wide input voltage range of ±14 Volts and compatibility with supply voltages from ±3 to ±18 Volts, this amplifier offers exceptional versatility.

Noise suppression is another key feature, with ultra-low noise levels of 0.6µV peak-to-peak, ensuring signal integrity in audio systems. The OP07CP also handles differential input voltages up to ±30 Volts, providing robust performance. Its wide operating temperature range, from -65°C to +125°C, ensures reliability in extreme environments. Additionally, its flexible socket compatibility simplifies integration into various circuit designs.

Specifications Relevant to Audio Systems

The OP07 operational amplifier delivers specifications tailored to audio processing. Its low noise characteristic ensures high-fidelity sound reproduction, a critical requirement for professional audio equipment. The wide input voltage range allows seamless integration into diverse audio circuits. Its ability to suppress noise and maintain stability over a broad temperature range makes it ideal for dynamic audio environments. These specifications enable the amplifier to handle subtle audio signals with precision, ensuring clarity and authenticity in sound output.

Advantages of the OP07 Operational Amplifier

The OP07 operational amplifier offers several advantages for audio applications. Its heightened sensitivity and precision allow it to detect subtle input signals with minimal interference. Unlike other amplifiers, it naturally maintains low drift, simplifying circuit design. The low offset and long-term stability ensure consistent performance without relying on chopper techniques.

This amplifier features a true differential input with a broad voltage range, making it suitable for noisy environments. Its low bias currents and high input impedances enhance adaptability across various audio applications. These characteristics make the OP07 operational amplifier a preferred choice for achieving superior sound quality in audio systems.

Enhancing Audio Processing with the OP07CP

Low Noise for High-Fidelity Audio

The OP07CP operational amplifier plays a vital role in delivering high-fidelity audio. Its low noise characteristics ensure that audio signals remain clear and free from unwanted interference. This feature is especially important in sensitive audio devices, where even minor noise can degrade sound quality. By minimizing noise, the OP07CP enables high-fidelity audio systems to reproduce sound with exceptional clarity and detail.

In professional audio equipment, low noise is critical for maintaining fidelity during audio amplification. The OP07 operational amplifier achieves this by suppressing unwanted signal distortions, ensuring that the original sound remains intact. This makes it an ideal choice for applications requiring precise audio quality enhancement.

Precision and Stability in Signal Amplification

The OP07 operational amplifier ensures precision and stability in signal amplification, which are essential for audio systems. Its low input offset voltage and high stability allow it to amplify audio signals with remarkable accuracy. These features make it suitable for high-gain measurement applications, where even small errors can impact performance.

The amplifier’s ability to maintain stability under varying conditions ensures consistent results in audio processing. This reliability is particularly beneficial in amplifying sensor signals or in precision applications where accuracy is paramount. The OP07CP’s design eliminates the need for complex compensation techniques, simplifying its integration into audio circuits.

Benefits for Dynamic Range and Sound Clarity

The OP07 operational amplifier enhances the dynamic range of audio systems, allowing them to handle both soft and loud sounds without distortion. Its low distortion features ensure that audio signals retain their original quality, even at high amplification levels. This capability is crucial for achieving high fidelity in audio equipment.

By preserving the integrity of audio signals, the OP07CP improves sound clarity and overall audio quality. Its ability to amplify subtle details makes it a preferred choice for sensitive audio devices. Whether used in audio amplification or sensor signal amplification, the OP07CP delivers consistent performance, ensuring a superior listening experience.

Practical Applications in Audio Systems

Signal Amplification in Audio Preamps

The OP07 operational amplifier excels in signal amplification for audio preamps. Its low offset voltage ensures precise handling of audio signals, even at low levels. This precision is critical for preamplifiers, which boost weak signals from microphones or instruments before further processing. The amplifier’s low distortion characteristics preserve the original quality of the sound, ensuring clarity and fidelity.

The wide input voltage range of the OP07 operational amplifier allows it to adapt to various preamp designs. Its high input impedance minimizes loading effects, maintaining the integrity of the input signal. These features make the OP07 operational amplifier a reliable choice for audio preamps in both professional and consumer audio equipment.

Noise Reduction in Audio Circuits

The OP07CP employs advanced techniques to reduce noise in audio circuits effectively. Its chopperless, bipolar-input-transistor design minimizes noise without introducing additional distortion. This design eliminates the need for external components for offset nulling or frequency compensation, simplifying circuit design.

The true differential input of the OP07CP, combined with excellent common-mode rejection, enhances its performance in noisy environments. These features ensure that audio signals remain clear and free from interference, even in challenging conditions. This makes the OP07 operational amplifier ideal for applications requiring high-quality sound reproduction.

Filtering and Equalization in Audio Processing

The OP07 operational amplifier plays a vital role in filtering and equalization tasks within audio systems. Its low noise and high stability enable precise frequency adjustments, essential for shaping the tonal balance of audio signals. Equalization circuits rely on the amplifier’s ability to handle subtle signal variations without introducing distortion.

In filtering applications, the OP07 operational amplifier ensures accurate separation of frequencies, enhancing the overall sound quality. Its low drift and long-term stability maintain consistent performance, even under varying environmental conditions. These attributes make it a preferred choice for audio systems requiring precise filtering and equalization.

Implementing the OP07CP in Audio Circuits

Pin Configuration and Circuit Design

The OP07 operational amplifier features an 8-pin configuration, simplifying its integration into audio circuits. Pin 2 and Pin 3 serve as the inverting and non-inverting inputs, respectively, while Pin 6 outputs the amplified signal. Pins 4 and 7 connect to the negative and positive power supplies, ensuring stable operation. Designers can use Pins 1 and 8 for offset nulling, which fine-tunes the voltage to enhance precision.

When designing circuits, the OP07 operational amplifier's reduced nulling requirements streamline the process. This simplification minimizes errors in complex circuits, improving long-term reliability. Its low noise and high input impedance ensure accurate handling of audio signals, while the broad input voltage range supports diverse applications. Proper power supply management is crucial, as exceeding 22 volts may damage the amplifier.

Calibration Tips for Optimal Performance

Calibrating the OP07 operational amplifier ensures consistent performance in audio systems. Designers should use external components with the input offset pins to fine-tune the voltage. This adjustment maintains stability under varying conditions, enhancing the amplifier's precision.

To achieve optimal results, designers should carefully manage the power supply and ensure proper grounding. Using high-quality resistors and capacitors reduces noise and improves signal integrity. Regular calibration checks help maintain the amplifier's performance over time, especially in demanding audio applications.

Avoiding Common Implementation Mistakes

Avoiding common mistakes ensures the OP07 operational amplifier performs effectively. Designers should verify that the power supply voltage remains within the recommended range. Exceeding this limit can compromise the amplifier's functionality. Properly configuring the offset null pins prevents signal distortion and maintains accuracy.

Neglecting to account for the amplifier's high input impedance may lead to loading effects, reducing signal quality. Designers should also ensure the circuit layout minimizes interference and noise. Following these guidelines helps achieve reliable amplification and superior audio quality in various systems.

Comparing the OP07CP with Alternative Operational Amplifiers

Unique Advantages of the OP07CP

The OP07 operational amplifier offers several unique advantages that make it a standout choice for precision audio systems. Its low offset voltage ensures accurate signal processing, which is essential for maintaining signal integrity in audio applications. The amplifier’s high common-mode rejection ratio minimizes interference, allowing it to perform reliably in noisy environments.

The OP07 operational amplifier’s chopperless design enhances stability and reduces noise without requiring additional components. This feature simplifies circuit design and improves long-term reliability. Its low input bias currents further enhance precision, making it suitable for high-impedance applications. These characteristics position the OP07 operational amplifier as a reliable and efficient solution for demanding audio environments.

Comparison with Other Low-Noise Amplifiers

The OP07 operational amplifier stands out among low-noise amplifiers due to its performance and cost-effectiveness. Its low offset voltage and high stability ensure precise signal amplification, even in challenging conditions. Unlike many alternatives, the OP07 operational amplifier does not require external components for offset nulling or frequency compensation. This reduces design complexity and overall costs.

Its chopperless design provides superior noise suppression, making it ideal for audio systems requiring high fidelity. Additionally, the OP07 operational amplifier’s bulk pricing options make it a competitive choice for large-scale applications. These features make it a preferred option over other low-noise amplifiers in terms of both performance and affordability.

Choosing the OP07CP for Audio Applications

The OP07 operational amplifier is a preferred choice for audio applications due to its precision and reliability. Its low offset voltage ensures accurate signal processing, which is critical for maintaining sound quality. The amplifier’s stability eliminates the need for external nulling, simplifying circuit design and enhancing reliability.

Key features such as low noise and high input impedance make the OP07 operational amplifier ideal for audio systems requiring precise signal amplification. Its ability to handle subtle signal variations ensures consistent performance in professional and consumer audio equipment. These attributes make the OP07 operational amplifier a trusted solution for achieving superior audio quality.

The OP07CP offers unmatched precision and low noise, making it indispensable for audio processing. Its ability to enhance sound clarity and dynamic range ensures superior performance in audio systems. Engineers and hobbyists can explore its potential in diverse projects. This operational amplifier remains a valuable tool for achieving professional-grade audio quality.

What makes the OP07CP ideal for audio applications?

The OP07CP offers low noise, high precision, and stability. These features ensure accurate signal amplification, making it suitable for high-fidelity audio systems.

How does the OP07CP improve sound clarity?

The OP07CP minimizes distortion and amplifies subtle signals. This ensures audio systems reproduce sound with exceptional clarity and detail.

Can the OP07CP handle extreme environmental conditions?

Yes, the OP07CP operates reliably between -65°C and +125°C. Its wide temperature range ensures consistent performance in diverse environments.

💡 Tip: Always verify the power supply voltage to avoid damaging the OP07CP during operation.
