How the SI4554DY-T1-GE3 Simplifies Circuit Design

The SI4554DY-T1-GE3, a dual N- and P-channel MOSFET array, revolutionizes circuit design by combining two transistor types in one compact package. This device excels in efficient switching and amplification, making it indispensable for high-power applications. With a drain-source voltage of 40V and a continuous drain current of 8A, it delivers robust performance while minimizing power loss through its low on-resistance of 0.02 ohms. Engineers value its ability to streamline designs, reduce component count, and enhance reliability, ensuring seamless integration into modern electronic systems.

Key Takeaways

• The SI4554DY-T1-GE3 integrates both N-channel and P-channel MOSFETs in a single package, simplifying circuit design and reducing component count.

• With a low on-resistance of 0.02 ohms, this MOSFET minimizes power loss, enhancing energy efficiency in high-power applications.

• Its fast switching speeds (rise time of 40 ns and fall time of 18 ns) make it ideal for high-frequency applications like DC-DC converters and motor drivers.

• The device operates reliably across a wide temperature range of -55°C to +150°C, ensuring consistent performance in harsh environments.

• Engineers can streamline inventory management by using the same component across multiple projects, reducing costs and complexity.

• The compact 8-pin SOIC package supports surface-mount technology, saving valuable space on circuit boards for modern electronic designs.

• The SI4554DY-T1-GE3 is versatile, suitable for applications in consumer electronics, industrial machinery, and automotive systems, making it a valuable asset for designers.

What is the SI4554DY-T1-GE3 MOSFET?

Overview of the SI4554DY-T1-GE3

The SI4554DY-T1-GE3 is a dual N- and P-channel MOSFET designed to meet the demands of modern electronic systems. Manufactured by Vishay, this device integrates two complementary transistors into a single 8-pin SOIC package. This compact design reduces the need for multiple components, saving valuable space on circuit boards. Engineers often rely on this MOSFET for its ability to handle high-power applications efficiently.

Key specifications highlight its robust performance. The device supports a continuous drain current of up to 8A and operates with a drain-source voltage of 40V. Its low on-resistance, rated at 0.02 ohms, minimizes power loss during operation. Additionally, the MOSFET features a power dissipation capability of 3.2W, ensuring reliable performance even under demanding conditions. These attributes make it an ideal choice for applications requiring efficient switching and amplification.

Dual N- and P-Channel Configuration and Its Advantages

The dual N- and P-channel configuration of the SI4554DY-T1-GE3 offers significant advantages for circuit designers. By combining both transistor types in one package, this MOSFET simplifies circuit layouts and reduces design complexity. This configuration enables seamless integration into circuits that require complementary switching, such as H-bridge motor drivers or DC-DC converters.

One major benefit of this dual setup is design flexibility. The N-channel MOSFET, with its higher current-handling capability, excels in low-side switching. Meanwhile, the P-channel MOSFET is well-suited for high-side switching. Together, they provide a balanced solution for managing power flow in various systems. This versatility allows engineers to use the same component across multiple applications, streamlining inventory management and reducing costs.

Another advantage lies in its efficiency. The low on-resistance of both channels ensures minimal energy loss, which is critical for power-sensitive applications. Furthermore, the integrated design reduces parasitic inductance and resistance, improving overall circuit performance. These features make the SI4554DY-T1-GE3 a valuable asset for engineers aiming to optimize their designs.

Key Specifications of the SI4554DY-T1-GE3

Electrical Specifications

The SI4554DY-T1-GE3 delivers exceptional electrical performance, making it a reliable choice for demanding applications. Its drain-source voltage (VDS) reaches up to 40V, ensuring compatibility with a wide range of power systems. The device supports a continuous drain current of 8A for the N-channel MOSFET and 6.6A for the P-channel MOSFET, enabling it to handle substantial power loads efficiently.

This MOSFET features a low on-resistance (RDS(on)) of 0.02 ohms, which minimizes conduction losses and enhances energy efficiency. The gate-to-source voltage (VGS) operates at a maximum of 20V, providing robust control over switching operations. Additionally, the input capacitance of 690 pF ensures fast and precise switching, which is critical for high-speed circuits. Engineers value these specifications for their ability to optimize power management and improve overall circuit performance.

The device also boasts impressive switching speeds. With a rise time of 40 nanoseconds and a fall time of 18 nanoseconds, it ensures rapid transitions between states. These characteristics make the SI4554DY-T1-GE3 ideal for applications requiring high-frequency switching, such as DC-DC converters and motor drivers.

Thermal and Physical Specifications

Thermal management plays a crucial role in the performance and longevity of electronic components. The SI4554DY-T1-GE3 excels in this area with a maximum junction temperature of 150°C and an operating temperature range from -55°C to +150°C. These attributes allow the device to function reliably in extreme environments, including industrial and automotive applications.

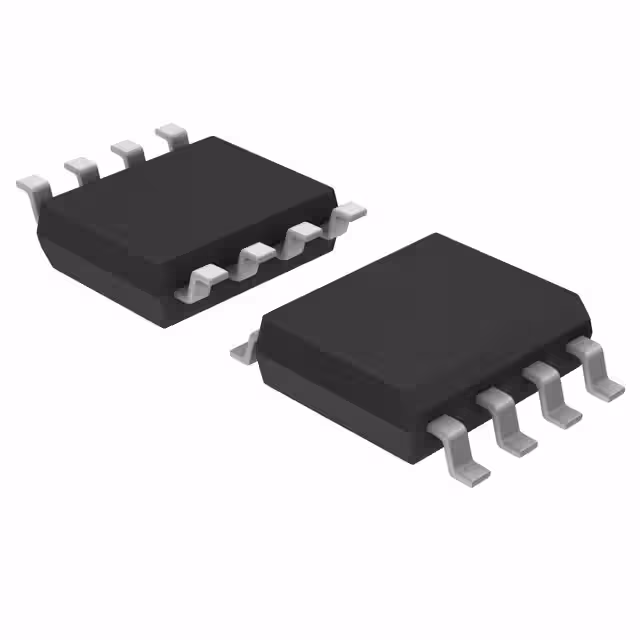

The MOSFET's power dissipation capability reaches up to 3.2W, ensuring stable operation under heavy loads. Its compact 8-pin SOIC package, measuring 5mm in length, 4mm in width, and 1.5mm in height, supports surface-mount technology. This design saves valuable space on circuit boards, making it suitable for compact and portable devices.

The physical construction of the SI4554DY-T1-GE3 includes tin-plated contacts, which enhance conductivity and resist corrosion. The device's lightweight design, at just 506.6 milligrams, further simplifies integration into various systems. These thermal and physical specifications highlight its durability and adaptability across diverse applications.

How the SI4554DY-T1-GE3 Simplifies Circuit Design

Design Flexibility with Dual MOSFET Configuration

The SI4554DY-T1-GE3 offers unmatched design flexibility by integrating both N-channel and P-channel MOSFETs into a single package. This dual configuration eliminates the need for separate components, reducing circuit complexity and saving valuable space on printed circuit boards. Engineers can use this device to streamline their designs, especially in applications requiring complementary switching, such as H-bridge motor drivers or synchronous DC-DC converters.

The N-channel MOSFET in the SI4554DY-T1-GE3 excels in low-side switching, handling high currents with ease. Its continuous drain current of 8A ensures reliable performance in demanding power systems. The P-channel MOSFET, on the other hand, is ideal for high-side switching, offering seamless control over power flow. Together, these transistors provide a balanced solution for managing power distribution in various electronic systems.

This dual configuration also enhances versatility. Engineers can deploy the same component across multiple projects, simplifying inventory management and reducing costs. The compact 8-pin SOIC package further supports this flexibility by enabling integration into space-constrained designs. By combining functionality and adaptability, the SI4554DY-T1-GE3 empowers designers to create efficient and reliable circuits.

Efficiency in Power Management and Switching

Efficiency remains a critical factor in modern circuit design, and the SI4554DY-T1-GE3 excels in this area. Its low on-resistance of 0.02 ohms minimizes conduction losses, ensuring optimal energy efficiency. This feature proves essential in power-sensitive applications, where every watt saved contributes to overall system performance.

The device's fast switching speeds further enhance its efficiency. With a rise time of 40 nanoseconds and a fall time of 18 nanoseconds, the SI4554DY-T1-GE3 enables rapid transitions between states. This capability makes it an excellent choice for high-frequency applications, such as DC-DC converters and motor drivers. Engineers can rely on its precise switching to optimize power management and reduce energy waste.

Additionally, the MOSFET's power dissipation capability of 3.2W ensures stable operation under heavy loads. This attribute allows the device to handle demanding conditions without compromising performance. Its ability to operate within a wide temperature range, from -55°C to +150°C, further underscores its reliability in diverse environments, including industrial and automotive settings.

By combining low power loss, fast switching, and robust thermal performance, the SI4554DY-T1-GE3 simplifies power management for engineers. It provides a dependable solution for creating energy-efficient circuits that meet the demands of modern electronic systems.

Practical Applications of the SI4554DY-T1-GE3

Consumer Electronics

The SI4554DY-T1-GE3 plays a vital role in consumer electronics by ensuring efficient power management and reliable performance. Its dual N- and P-channel MOSFET configuration simplifies circuit design, making it an ideal choice for compact devices like smartphones, tablets, and wearable gadgets. By integrating both transistor types into a single package, this component reduces the need for additional parts, saving space on circuit boards.

John Doe, an engineer, shared his experience of using the SI4554DY-T1-GE3 in a consumer electronics project. He highlighted how the MOSFET efficiently controlled power flow, enhancing the overall performance of the device. This capability proves essential in applications where energy efficiency and compact design are critical. The low on-resistance of 0.02 ohms minimizes power loss, ensuring longer battery life in portable devices.

In addition to power management, the SI4554DY-T1-GE3 supports high-speed switching, which is crucial for modern electronics. Devices like gaming consoles and smart home systems benefit from its rapid response times, enabling seamless operation. Its ability to handle continuous drain currents of up to 8A ensures stability, even in demanding scenarios. These features make it a preferred choice for engineers designing next-generation consumer electronics.

Industrial and Automotive Applications

The SI4554DY-T1-GE3 demonstrates exceptional performance in industrial and automotive settings, where reliability and efficiency are paramount. Its robust design, capable of operating within a temperature range of -55°C to +150°C, ensures consistent performance in harsh environments. This versatility makes it suitable for applications such as motor drivers, battery management systems, and power converters.

Jane Smith, an industrial engineer, emphasized the importance of the SI4554DY-T1-GE3 in managing high-power requirements effectively. She noted its role in optimizing power distribution in industrial machinery, ensuring smooth and efficient operation. The MOSFET's ability to handle substantial power loads, with a continuous drain current of 8A for the N-channel and 6.6A for the P-channel, proves invaluable in such applications.

In automotive systems, the SI4554DY-T1-GE3 supports critical functions like motor control and load switching. Its fast switching speeds enhance the performance of electric vehicles and hybrid systems, contributing to energy efficiency. The compact 8-pin SOIC package allows for easy integration into space-constrained designs, such as those found in modern automotive electronics.

The MOSFET's durability and adaptability make it a reliable choice for engineers working on industrial and automotive projects. Its ability to withstand heavy loads and extreme conditions ensures long-term performance, reducing maintenance costs and downtime.

Benefits of Using the SI4554DY-T1-GE3

Enhanced Performance and Reliability

The SI4554DY-T1-GE3 delivers exceptional performance, making it a reliable choice for engineers. Its low on-resistance minimizes energy loss, ensuring efficient power management in various applications. This feature proves critical in systems where energy conservation directly impacts overall functionality. The device's ability to handle high currents and voltages enhances its suitability for demanding environments.

Engineers value its robust thermal performance. The MOSFET operates within a wide temperature range, from -55°C to +150°C, maintaining stability under extreme conditions. This capability ensures consistent operation in industrial and automotive applications. Its fast switching speeds further contribute to its reliability, enabling precise control in high-frequency circuits. These attributes make the SI4554DY-T1-GE3 a dependable component for modern electronic systems.

The dual N- and P-channel configuration simplifies circuit design while improving reliability. By integrating both transistor types into a single package, the device reduces the risk of errors during assembly. This design also minimizes parasitic elements, enhancing overall circuit performance. Engineers trust this MOSFET to deliver consistent results across diverse applications.

Cost-Effectiveness and Long-Term Durability

The SI4554DY-T1-GE3 offers significant cost advantages for designers. Its dual configuration eliminates the need for separate components, reducing material costs and simplifying inventory management. The compact 8-pin SOIC package saves space on circuit boards, allowing for more efficient use of resources. These factors contribute to lower production costs without compromising performance.

Durability remains a key strength of this MOSFET. Its robust construction ensures long-term reliability, even in harsh environments. The tin-plated contacts resist corrosion, extending the device's lifespan. Engineers benefit from reduced maintenance requirements and fewer replacements, leading to cost savings over time. This durability makes the SI4554DY-T1-GE3 an economical choice for projects requiring long-lasting components.

The device's ability to handle heavy loads and extreme temperatures underscores its value. Its power dissipation capability ensures stable operation under demanding conditions. This reliability reduces downtime and enhances system efficiency. By combining cost-effectiveness with durability, the SI4554DY-T1-GE3 provides a practical solution for engineers seeking high-performance components.

Why the SI4554DY-T1-GE3 is a Valuable Component for Designers

Simplified Design Process

The SI4554DY-T1-GE3 simplifies the design process by integrating both N-channel and P-channel MOSFETs into a single compact package. This dual configuration eliminates the need for separate transistors, reducing the number of components required in a circuit. Engineers can streamline their designs, saving time during the development phase and minimizing potential assembly errors.

The device's low on-resistance of 0.02 ohms ensures efficient power flow, which reduces energy loss and enhances overall circuit performance. Its continuous drain current of 8A and drain-source voltage of 40V provide robust capabilities for high-power applications. These features allow designers to focus on optimizing other aspects of their systems without worrying about the MOSFET's reliability or efficiency.

Additionally, the 8-pin SOIC package supports surface-mount technology, making it easy to integrate into modern printed circuit boards. This compact design conserves valuable board space, which is especially critical in applications like consumer electronics and automotive systems. By offering a combination of functionality and ease of use, the SI4554DY-T1-GE3 empowers engineers to create efficient and reliable circuits with minimal effort.

Versatility Across Applications

The SI4554DY-T1-GE3 demonstrates exceptional versatility, making it suitable for a wide range of applications. Its dual N- and P-channel configuration enables seamless integration into circuits requiring complementary switching, such as H-bridge motor drivers, DC-DC converters, and battery management systems. This adaptability allows engineers to use the same component across multiple projects, simplifying inventory management and reducing costs.

In consumer electronics, the MOSFET supports efficient power management in devices like smartphones, tablets, and gaming consoles. Its fast switching speeds and low power loss enhance performance while extending battery life. In industrial settings, the device handles high-power loads with ease, ensuring reliable operation in machinery and equipment. Automotive applications benefit from its ability to operate within a wide temperature range, from -55°C to +150°C, making it ideal for motor control and load switching in electric vehicles.

The SI4554DY-T1-GE3's robust specifications, including a power dissipation capability of 3.2W, further highlight its adaptability. Engineers can rely on this MOSFET to deliver consistent performance across diverse environments and demanding conditions. Its versatility ensures that it remains a valuable asset for designers working on projects in various industries.

The SI4554DY-T1-GE3 stands out as a versatile and efficient solution for modern circuit design. Its dual N- and P-channel configuration, low on-resistance of 0.02 ohms, and robust thermal performance simplify complex designs while ensuring reliability. By reducing component count and enhancing energy efficiency, this MOSFET empowers engineers to create compact, high-performance systems. Its adaptability across consumer electronics, industrial, and automotive applications reinforces its value for designers seeking dependable and cost-effective components. The SI4554DY-T1-GE3 continues to be an essential tool for achieving innovation in electronic systems.

What technical support is available for the SI4554DY-T1-GE3?

Vishay provides comprehensive technical support for the SI4554DY-T1-GE3. Engineers can access detailed resources, including pinout information, application notes, and datasheets in PDF format. Support also includes schematic diagrams, equivalent components, and cross-reference guides. These materials ensure that designers have all the necessary tools to integrate the MOSFET into their projects effectively.

Can the SI4554DY-T1-GE3 be replaced or returned?

Replacement or return of the SI4554DY-T1-GE3 is possible under specific conditions. If the delivered product has defects, customers must notify the supplier within 90 days of delivery. The issue must meet the outlined criteria for a return or replacement to be accepted. This policy ensures customer satisfaction and product reliability.

What are the key applications of the SI4554DY-T1-GE3?

The SI4554DY-T1-GE3 serves various applications across industries. It is widely used in DC-DC converters, motor drivers, battery management systems, and load switches. Its dual N- and P-channel configuration makes it ideal for consumer electronics, industrial machinery, and automotive systems. The versatility of this MOSFET allows engineers to deploy it in numerous high-performance designs.

How does the SI4554DY-T1-GE3 improve circuit design?

The SI4554DY-T1-GE3 simplifies circuit design by integrating both N-channel and P-channel MOSFETs into a single compact package. This dual configuration reduces component count and saves space on circuit boards. Its low on-resistance and fast switching speeds enhance energy efficiency and performance, making it a valuable asset for modern electronic systems.

What makes the SI4554DY-T1-GE3 suitable for high-power applications?

The SI4554DY-T1-GE3 supports a continuous drain current of up to 8A for the N-channel and 6.6A for the P-channel. Its drain-source voltage rating of 40V and low on-resistance of 0.02 ohms minimize power loss. These features enable the MOSFET to handle substantial power loads efficiently, making it ideal for demanding applications.

What is the operating temperature range of the SI4554DY-T1-GE3?

The SI4554DY-T1-GE3 operates reliably within a wide temperature range of -55°C to +150°C. This capability ensures consistent performance in extreme environments, such as industrial and automotive applications. Its robust thermal design enhances durability and long-term reliability.

How does the SI4554DY-T1-GE3 contribute to energy efficiency?

The SI4554DY-T1-GE3 features a low on-resistance of 0.02 ohms, which minimizes conduction losses. Its fast switching speeds, with a rise time of 40 nanoseconds and a fall time of 18 nanoseconds, further optimize energy efficiency. These attributes make it an excellent choice for power-sensitive applications.

What packaging does the SI4554DY-T1-GE3 use?

The SI4554DY-T1-GE3 comes in an 8-pin SOIC package. This compact design supports surface-mount technology, saving space on circuit boards. The package also features tin-plated contacts, which enhance conductivity and resist corrosion, ensuring long-term reliability.

Is the SI4554DY-T1-GE3 suitable for portable devices?

Yes, the SI4554DY-T1-GE3 is well-suited for portable devices like smartphones, tablets, and wearable gadgets. Its compact design and efficient power management capabilities make it ideal for space-constrained applications. The low on-resistance and fast switching speeds contribute to extended battery life in portable electronics.

Where can I find additional resources for the SI4554DY-T1-GE3?

Additional resources for the SI4554DY-T1-GE3 are available through Vishay's official website and authorized distributors. These include datasheets, application notes, and technical manuals. Engineers can also contact product technical support for personalized assistance and guidance.
