What Is Electrical Resistance and How Do Resistors Use It

Electrical resistance, a fundamental concept in electronics, describes how materials oppose the flow of electric current. It plays a crucial role in regulating current levels within circuits, ensuring components function properly and remain protected from damage. Resistance helps prevent overcurrent conditions, which can harm sensitive electronic parts or cause circuit failure. For instance, tests demonstrate that conductor resistance remains stable even after repeated short-circuit events, highlighting its significance in maintaining circuit integrity. Resistors, a passive two-terminal electronic component, utilize electrical resistance to control current flow effectively. These components ensure circuits operate within safe limits, making them essential in the field of electronics.

Key Takeaways

• Electrical resistance slows down electric current to protect parts.

• Resistors are important for controlling current and splitting voltage.

• Ohm's Law helps find the right resistor for the job.

• Fixed and variable resistors are used for different purposes.

• Choosing the right resistors makes circuits safer and saves energy.

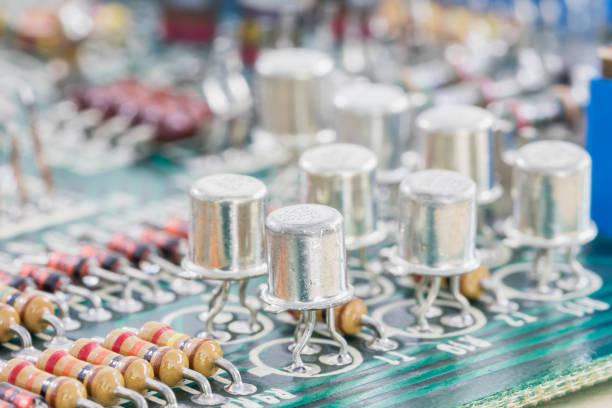

What Is a Resistor?

Definition of a resistor

A resistor is a passive two-terminal electronic component that implements electrical resistance in a circuit. It is designed to reduce current flow, divide voltages, and adjust signal levels. Resistors are fundamental to electronic circuits, as they help regulate the flow of electricity to ensure proper operation. Historically, resistors have evolved significantly, with innovations like Bulk Metal Foil resistors introduced in the 1960s to meet the demands of advanced technologies such as satellite systems. These developments highlight the precision and stability that resistors bring to modern electronics.

What does a resistor do in electronic circuits

Resistors play a critical role in controlling current and voltage in electronic circuits. They limit the amount of current flowing through a circuit, protecting sensitive components like LEDs from damage. For example, when connecting an LED to a higher voltage supply, a resistor ensures the current remains within safe limits, preventing the LED from burning out. This process involves calculating the required resistor value using Ohm's Law (I = V/R), which demonstrates the relationship between current, voltage, and resistance.

In addition to current limiting, resistors are used for voltage division. By placing resistors in series, they create a voltage drop across each resistor, allowing specific voltages to be supplied to different parts of the circuit. This function is essential in devices that require precise voltage levels for operation. Resistors also convert electrical energy into heat, which is useful in applications like heating elements or energy dissipation.

Importance of resistors in electronics

Resistors are indispensable in electronics due to their ability to ensure circuit functionality and stability. They protect components from excessive current, maintain voltage levels, and enable energy efficiency. For instance, low ohmic value current sense resistors are widely used in devices powered by batteries or motors. These resistors convert measured current into a voltage signal, allowing for effective current monitoring and control. This capability is crucial in applications where power efficiency is a priority.

The global resistor market, valued at USD 9.75 billion in 2023, underscores the importance of resistors in modern electronics. Their role in regulating voltage and current is vital for the proper operation of active components in devices ranging from consumer electronics to renewable energy systems. Without resistors, electronic circuits would lack the stability and precision needed for reliable performance.

How Does a Resistor Work?

The relationship between resistance, current, and voltage (Ohm’s Law)

Ohm’s Law defines the relationship between resistance, current, and voltage in an electrical circuit. It states that the current (I) flowing through a conductor is directly proportional to the voltage (V) across it and inversely proportional to the resistance (R). This relationship is expressed mathematically as:

I = V / R

Here, current is measured in amperes (A), voltage in volts (V), and resistance in ohms (Ω). A resistor, a passive two-terminal electronic component, uses this principle to regulate current flow. For example, if a circuit has a voltage of 10 volts and a resistor with a value of 100 ohms, the current can be calculated as:

I = 10 V / 100 Ω = 0.1 A

Scientific experiments validate this relationship. For instance, when testing resistors with different values, the slope of the current-voltage graph aligns with the inverse of the resistance. The table below illustrates this:

This linear relationship confirms that resistors follow Ohm’s Law, unlike components such as incandescent light bulbs, which exhibit non-linear behavior.

How resistors control current and voltage

Resistors play a vital role in managing current and voltage in circuits. By introducing electrical resistance, they limit the amount of current flowing through a circuit. This protects sensitive components from damage caused by excessive current. For example, when connecting an LED to a power source, a resistor ensures the current remains within safe limits, preventing the LED from overheating or burning out.

Resistors also help divide voltage in circuits. When resistors are placed in series, the total resistance increases, causing a voltage drop across each resistor. This allows specific voltages to be supplied to different parts of the circuit. However, technical documents highlight that using a fixed resistor divider for voltage regulation can lead to instability when the load current varies. To address this, feedback loops and variable resistors are often employed to maintain consistent voltage output under changing conditions.

Analogies to explain resistance (e.g., water flow in pipes)

Analogies can simplify the concept of electrical resistance. A common analogy compares electrical circuits to water flowing through pipes. In this analogy, voltage represents water pressure, current represents the flow rate, and resistance corresponds to the pipe's width. A narrower pipe increases resistance, slowing the water flow, just as a higher resistance reduces electrical current.

While this analogy helps students visualize resistance, it can sometimes lead to misconceptions. For instance, a student might incorrectly assume that denser materials impede charge flow because they imagine electricity moving through gaps between particles. In reality, electrical resistance depends on factors like material composition and temperature, not the density of the material.

By understanding these principles, students can better grasp how resistors work to control current and voltage in electronic circuits.

Types of Resistors

Resistors come in various types, each designed for specific applications and performance characteristics. Understanding these types helps in selecting the right resistor for a circuit.

Fixed Resistors

Fixed resistors maintain a constant resistance value, making them ideal for applications requiring stable and predictable performance. These resistors are widely used in circuits where the resistance does not need adjustment. Common types include surface mount (SMD) and through-hole resistors.

Fixed resistors undergo rigorous testing to ensure reliability. Standards like MIL-STD-202 and UL 1412 validate their performance under different conditions, including temperature and electrical stress.

Variable Resistors (e.g., Potentiometers)

Variable resistors allow users to adjust resistance values manually or automatically. Potentiometers, a common type, feature a rotating knob or slider to change resistance. These resistors are essential in applications requiring fine-tuning, such as volume controls in audio equipment or brightness adjustments in displays.

Variable resistors often include feedback mechanisms to maintain consistent output under varying load conditions. This ensures stability in circuits where resistance changes dynamically.

Other types of variable resistors include rheostats, used for high-power applications, and trimmers, designed for precise adjustments during circuit calibration.

Linear vs. Non-Linear Resistors

Linear resistors follow Ohm’s Law, where the current through the resistor is directly proportional to the voltage across it. Examples include fixed resistors like thin film and thick film types. These resistors are ideal for applications requiring predictable behavior, such as precision measurement equipment.

Non-linear resistors, on the other hand, exhibit resistance that changes with voltage or current. A filament bulb serves as a classic example. Comparative studies show that the output voltage across a filament bulb does not follow a linear trend, highlighting its non-ohmic nature. Non-linear resistors, such as thermistors and varistors, are used in temperature sensing and surge protection applications.

Non-linear resistors provide unique advantages in circuits requiring dynamic response to environmental changes, such as temperature or voltage fluctuations.

Specialty resistors (e.g., thermistors, light-dependent resistors)

Specialty resistors are designed for specific applications where standard resistors may not perform effectively. Two common examples include thermistors and light-dependent resistors (LDRs). These components adapt their resistance based on environmental factors like temperature or light intensity, making them essential in various industries.

Thermistors are temperature-sensitive resistors. Their resistance changes significantly with temperature variations. Negative Temperature Coefficient (NTC) thermistors decrease resistance as temperature rises, while Positive Temperature Coefficient (PTC) thermistors increase resistance under the same conditions. These resistors are widely used in temperature sensing, circuit protection, and automotive applications. For instance, thermistors monitor engine temperatures in vehicles, ensuring optimal performance and safety.

Light-dependent resistors, also known as photoresistors, adjust their resistance based on light exposure. When exposed to bright light, their resistance decreases, allowing more current to flow. In darkness, their resistance increases, restricting current flow. LDRs are commonly found in devices like automatic streetlights, where they detect ambient light levels to control illumination.

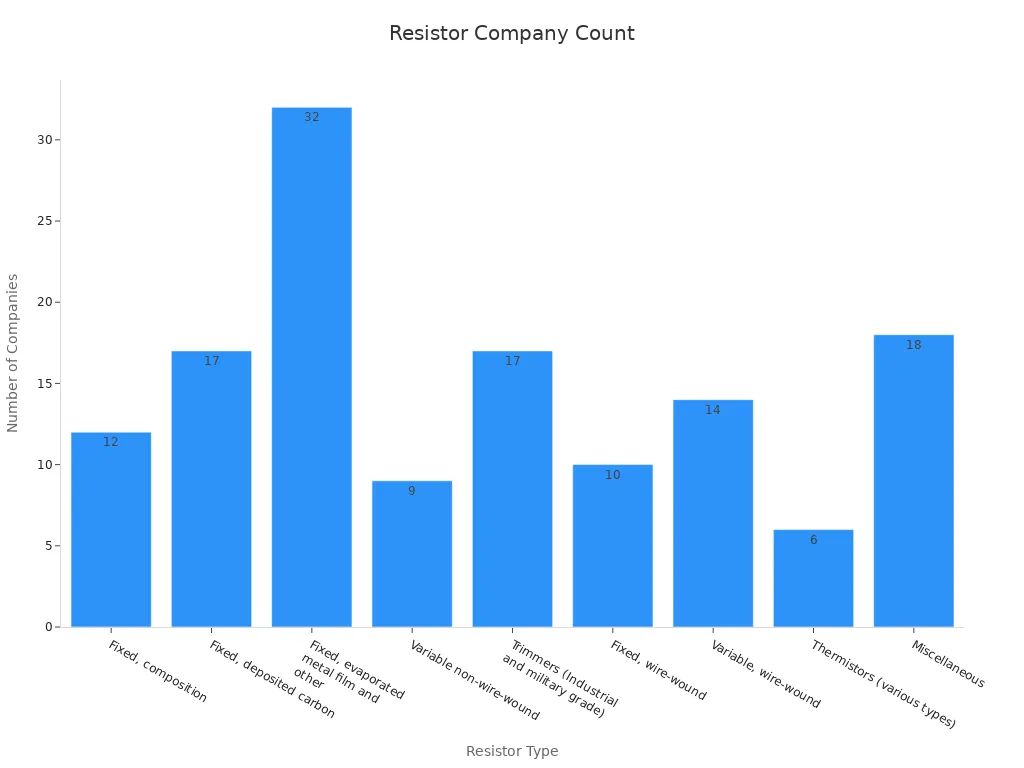

The production of specialty resistors, including thermistors, involves fewer manufacturers compared to other types of resistors. The table below highlights the number of companies producing various resistor types:

Thermistors and LDRs exemplify how specialty resistors address unique challenges in electronics. Their ability to respond dynamically to environmental changes makes them indispensable in modern technology.

Applications of Resistors

Voltage division in circuits

Resistors play a crucial role in voltage division, a technique used to distribute voltage across components in a circuit. In a series circuit with a 24V battery and three resistors (2Ω, 3Ω, and 5Ω), the voltage across the 3Ω resistor is calculated as 7.2V. This demonstrates how resistors divide voltage proportionally based on their resistance values. Similarly, in a parallel circuit powered by a 10A source with two resistors (10Ω and 20Ω), the current through the 20Ω resistor is found to be 3.333A.

Thevenin’s theorem simplifies complex networks into equivalent circuits, making voltage division easier to apply. This approach is particularly useful in circuits with multiple resistors and load components. Voltage division enables precise control of voltage levels, ensuring that sensitive components receive the correct operating voltage.

Tip: Voltage dividers are commonly used in sensor circuits to scale down voltage signals for microcontroller inputs.

Current limiting to protect components

Resistors serve as current-limiting devices to protect sensitive electronic components from excessive current. For example, LEDs require a resistor in series to prevent them from burning out. Without this resistor, the LED could experience excessive current, leading to failure.

Resistors configured as current-limiting components ensure safe operation by restricting the flow of current. This setup is essential for protecting devices like microcontrollers, sensors, and other low-power components. Engineers often calculate the resistor value using Ohm’s Law to achieve the desired current limit.

• Key Benefits of Current Limiting Resistors:

  • Prevent damage to components.

  • Enhance circuit reliability.

  • Ensure safe operation under varying load conditions.

Pull-up and pull-down resistors in digital circuits

Pull-up and pull-down resistors are indispensable in digital circuits. These resistors connect an integrated circuit logic output to the power rail or ground, ensuring a known logic voltage level. This setup prevents logic errors and false triggering, enhancing the reliability of digital logic operations.

For example, pull-up resistors ensure that an input pin reads a high voltage when no active signal is present. Conversely, pull-down resistors ensure a low voltage reading under the same conditions. These resistors stabilize digital circuits, especially in applications involving switches, sensors, or microcontrollers.

Note: Pull-up and pull-down resistors are widely used in embedded systems to maintain consistent logic states and prevent erratic behavior.

Heat generation and energy dissipation

Resistors convert electrical energy into heat as they oppose the flow of current. This heat generation occurs due to the power dissipation within the resistor, which is governed by formulas derived from Joule’s Law. The power dissipated can be calculated using either $P = I^2 \cdot R$ or $P = \frac{V^2}{R}$, where (P) represents power, (I) is current, (V) is voltage, and (R) is resistance. These equations highlight how resistors manage energy in circuits.

Heat generation in resistors serves both functional and protective purposes. In heating applications, resistors intentionally produce heat, such as in electric heaters or defrosting systems. However, excessive heat can damage components or reduce circuit efficiency. Manufacturers assign power ratings to resistors to specify the maximum amount of heat they can safely dissipate. Exceeding these ratings may lead to overheating, which can cause resistor failure or compromise circuit performance.

Energy dissipation also impacts the efficiency of electronic systems. Minimizing power loss is essential for reducing operational costs and conserving energy. Engineers often select resistors with appropriate ratings and materials to optimize energy use. For instance, resistors in high-power circuits may feature heat sinks or cooling mechanisms to manage thermal effects effectively.

The table below summarizes key concepts related to heat generation and energy dissipation:

Understanding heat generation and energy dissipation helps engineers design circuits that balance functionality and efficiency. Resistors play a vital role in managing these thermal effects, ensuring reliable operation in electronic systems.

Factors Affecting Resistor Performance

Temperature and its impact on resistance

Temperature significantly influences a resistor's performance. As temperature changes, the resistance of most materials fluctuates. This behavior is quantified by the temperature coefficient of resistance (TCR), which indicates how much resistance changes per degree Celsius. For example, a positive TCR means resistance increases with rising temperature, while a negative TCR indicates the opposite.

Materials like carbon and metal alloys are commonly used in resistors due to their predictable TCR values. In high-precision applications, engineers select resistors with minimal TCR to ensure consistent performance. Excessive heat can lead to thermal drift, where resistance deviates from its nominal value, potentially causing circuit instability. Proper heat dissipation techniques, such as heat sinks or ventilation, help mitigate these effects.

Tolerance and precision in resistance values

Resistor tolerance refers to the permissible deviation from its nominal resistance value, typically expressed as a percentage. For instance, a resistor with a nominal value of 100 ohms and a tolerance of ±5% may have an actual resistance ranging from 95 to 105 ohms. High-precision resistors, often used in critical applications, feature tighter tolerances, such as ±0.1%.

Manufacturing processes ensure resistor tolerance and precision meet industry standards. Quality control measures include advanced testing methods like Automated Optical Inspection (A.O.I) and Kelvin Four-terminal sensing. The table below highlights key aspects of quality control in resistor production:

These measures ensure resistors meet their specified tolerance levels, providing reliability in electronic circuits.

Common failure modes (e.g., overheating, physical damage)

Resistors can fail due to various factors, with overheating being the most common. Excessive current flow generates heat, which may exceed the resistor's power rating, leading to thermal damage. This can cause the resistor to burn out or change its resistance value permanently.

Physical damage, such as cracks or fractures, also affects performance. Mishandling during installation or exposure to mechanical stress can compromise the resistor's integrity. Environmental factors, including moisture and corrosion, further contribute to failure.

To prevent these issues, engineers select resistors with appropriate power ratings and protective coatings. Regular inspections and proper circuit design minimize the risk of failure, ensuring long-term reliability.

Electrical resistance plays a vital role in managing current and voltage within circuits. It ensures that electronic components operate safely and efficiently. Resistors, a passive two-terminal electronic component, utilize electrical resistance to regulate current flow, divide voltage, and protect sensitive parts from damage. Their performance directly impacts the reliability of electronic devices.

The demand for high-quality resistors continues to grow as advancements in consumer electronics drive the need for safer and more efficient devices. Electrical testing and rigorous standards validate resistor performance, ensuring they meet safety requirements. These components are indispensable for applications like voltage regulation, current limiting, and signal conditioning.

Exploring the diverse applications of resistors can deepen understanding of their importance in electronics. From everyday gadgets to advanced systems, resistors remain fundamental to the functionality and safety of modern technology.

What is the purpose of a resistor in a circuit?

A resistor controls the flow of electric current. It prevents excessive current that could damage components. Resistors also divide voltage and adjust signal levels, ensuring circuits operate safely and efficiently.

How do resistors affect voltage and current?

Resistors reduce current and create voltage drops. According to Ohm’s Law, the current decreases as resistance increases. Voltage drops occur across resistors, dividing the total voltage in a circuit proportionally to their resistance values.

Can resistors overheat?

Yes, resistors can overheat if they exceed their power rating. Overheating may cause permanent damage or failure. Engineers select resistors with appropriate ratings and use cooling methods like heat sinks to prevent this issue.

What is the difference between fixed and variable resistors?

Fixed resistors have a constant resistance value. Variable resistors, like potentiometers, allow users to adjust resistance. Variable resistors are ideal for applications requiring fine-tuning, such as volume controls or brightness adjustments.

Why are pull-up and pull-down resistors important in digital circuits?

Pull-up and pull-down resistors stabilize input pins in digital circuits. They ensure a known logic state (high or low) when no active signal is present. This prevents erratic behavior and improves circuit reliability.
